Specifications

I/O Points	16
Input Voltage DC (V)	24
Operational Temperature Range (°C)	0 to 55
Input Current (mA)	4.3
Net Weight (g)	75
Operating Humidity	10 to 95% RH
Impedance (?)	100
Resistance to Shock (m/s²)	147
Current Consumption (mA)	40

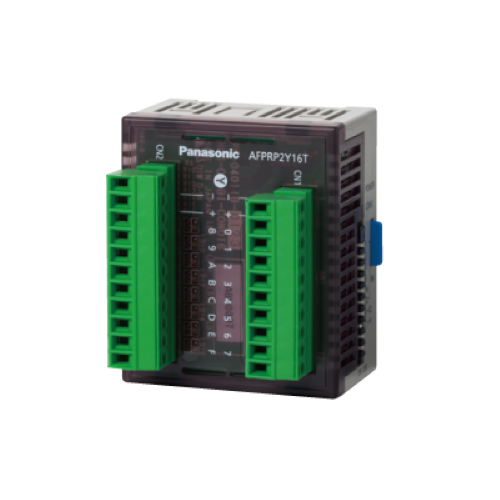

Product Type	Remote I/O Unit
Brand	PANASONIC
Connection Type	Connector-type terminal block
Humidity	10-95%
Operational Temperature	0 to 55 deg C
Rated Current	4.3 mA
Rated Voltage	24 VDC
Shape	Compact Type
Shock Resistance	147 ms
Terminal Type	Screw Type Terminal Block
Weight	75 g
