Specifications

Cable Cross Section (mm²)	0.2
Cable Length (m)	2
Illuminance (lx)	<3000
Insulation Resistance (MO)	2
Enclosure Material	PBT
Rated Supply Voltage DC (V)	12 - 24
Sensing Range (m)	15
Storage Temperature (°C)	-30 to +70
Current Consumption (mA)	Emitter: 20 or less, Receiver: 10 or less
Output Operation	Switchable - Light-ON or Dark-ON
Withstand Voltage AC (V)	1000 for 1 min
Response Time (ms)	<1
Mounting Method	Bracket (not included)
Gross Weight (g)	100
Net Weight (g)	50
Ambient Temperature (°C)	-25 to +55
Resistance to Shock (m/s²)	500

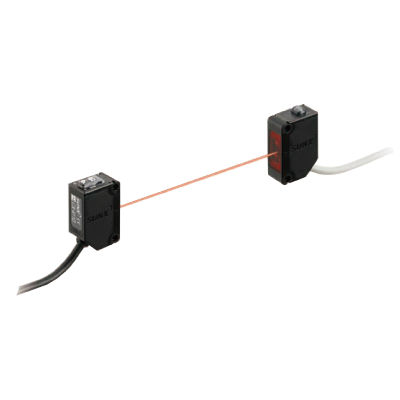

Product Type	Compact Photoelectric Sensor
Brand	PANASONIC
Series	Cx-400
Cable Length	2 m
Cable Type	2-core cabtyre cable
Degree of Protection	IP67
Emitting Element	Infrared
Housing Material	PBT
Humidity	35-85%
Illuminance	<3000 lx
Insulation Resistance	2 MOhm
Mounting Type	Bracket
Operation Indicator	Orange LED ON
Operational Temperature	-30 to 70 deg C
Rated Current	20 mA Emitter, 10 mA Receive
Rated Voltage	12-24 VDC
Relative Humidity	35 to 85%
Response Time	<1 ms
Sensing Range	15 m
Sensor Type	Thru-beam Long sensing range
Shock Resistance	500 ms
Standards and Approvals	CE, EMC Directive
Weight	100 g
