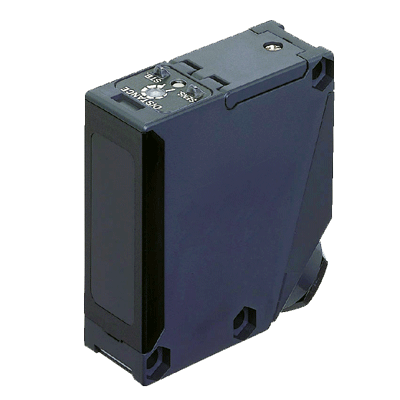

Panasonic EQ-512 Adjustable Range Reflective Photoelectric Sensor 12-24VDC 0.1-1mm Sensing NPN-Output

Product Code: EQ-512

  • Sensing range: 0.1-1 mm
  • Voltage: 12-24 VDC, Current: <45 mA
  • Durable ABS housing, IP67 rated
  • Quick response time: <2 ms
  • Operational temp: -30 to 70°C
In Stock Low Stock Out Of Stock Please See Attributes

Specifications

Rated Supply Voltage DC (V) 12 to 24
Enclosure Material ABS
Illuminance (lx) 3000
Insulation Resistance (MO) 20
Outputs NPN & PNP
Storage Temperature (&#176;C) -30 to +70
Current Consumption (mA) <45
Sensing Range (mm) 0.1 to 1
Withstand Voltage AC (V) 1000 for 1 minute
Response Time (ms) <2
Net Weight (g) 85
Ambient Temperature (&#176;C) -25 to +55
Resistance to Shock (m/s&#178;) 500
Product Type Adjustable Range Reflective Photoelectric Sensor
Brand PANASONIC
Degree of Protection IP67
Housing Material ABS
Humidity 35-85%
Illuminance 3000 lx
Insulation Resistance 20 MOhm
Operation Indicator Orange LED ON
Operational Temperature -30 to 70 deg C
Output Type NPN
Rated Current <45 mA
Rated Voltage 12-24 VDC
Relative Humidity 35 to 85%
Response Time <2 ms
Sensing Range 0.1-1 mm
Sensor Type DC-Voltage
Shock Resistance 500 ms
Weight 85 g
