Specifications

Rated Supply Voltage DC (V)	12 to 24
Enclosure Material	ABS
Illuminance (lx)	3000
Insulation Resistance (MO)	20
Outputs	NPN & PNP
Storage Temperature (°C)	-30 to +70
Current Consumption (mA)	<45
Sensing Range (mm)	0.1 to 1
Withstand Voltage AC (V)	1000 for 1 minute
Response Time (ms)	<2
Net Weight (g)	85
Ambient Temperature (°C)	-25 to +55
Resistance to Shock (m/s²)	500

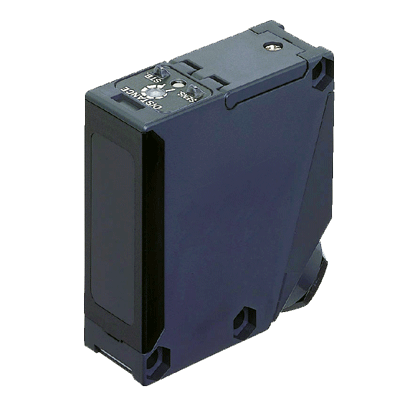

Product Type	Adjustable Range Reflective Photoelectric Sensor
Brand	PANASONIC
Degree of Protection	IP67
Housing Material	ABS
Humidity	35-85%
Illuminance	3000 lx
Insulation Resistance	20 MOhm
Operation Indicator	Orange LED ON
Operational Temperature	-30 to 70 deg C
Output Type	NPN
Rated Current	<45 mA
Rated Voltage	12-24 VDC
Relative Humidity	35 to 85%
Response Time	<2 ms
Sensing Range	0.1-1 mm
Sensor Type	DC-Voltage
Shock Resistance	500 ms
Timer Function	ON-delay/OFF-delay timer (Timer period: 0.1 to 5 sec)
Weight	85 g
