Specifications

Product Type	Photoelectric Sensor
Brand	Panasonic
Series	EX - 30
Cable Length	2 m
Max. Switching Distance	500 mm
Sensing Type	Thru-beam
Type of Switching Output	PNP
Utilization Category	DC-12 or DC-13
Indication	Orange LED ON
Electrical Connection	Cable
Illumination	3000 lx
Light Source	Red LED (modulated)
Output Type	PNP
Rated Current	<10 mA
Rated Voltage	12 to 24 V DC ±10 % Ripple P-P 10 % or less
Sensor Type	Thru-beam
Response Time	<0.5 ms
Cable Type	2 core cabtyre
Housing Material	Die Cast Zinc
Material	Enclosure: Die-cast zinc (Nickel plated), Lens: Polycarbonate, Enclosure cover: Polycarbonate
Depth	14 mm
Height	15.6 mm
Weight	65 g
Width	15.6 mm
Relative Humidity (Without condensation)	35 to 85%
Humidity	35-85%
Operating Temperature	–25 to +55 °C
IP Rating	IP67 (IEC)
Standards and Approvals	CE, RoHS, UL Recognition

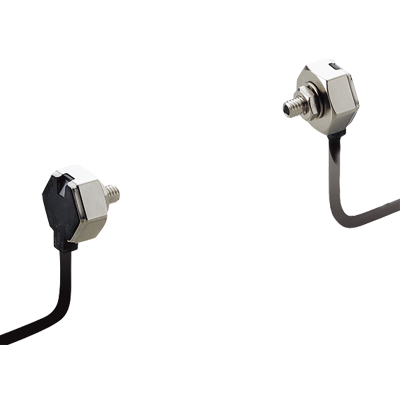

Panasonic EX-31B-PN Threaded Miniature Photoelectric Sensor 12-24VDC 500mm Sensing 2m L Cable PNP-Output
