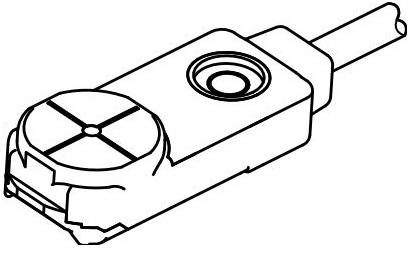

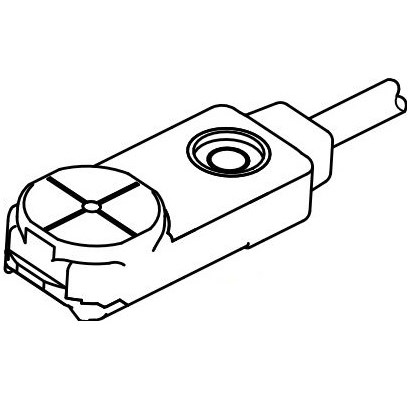

Panasonic GX-F12A-C5 Rectangular Inductive Proximity Sensor NO NPN-Output 5m L Cable

Product Code: GX-F12A-C5

  • Sensing range of 0-3.3 mm
  • Operates on 12-24 VDC, <15 mA current
  • Durable PBT housing with IP68 protection
  • Functions in -40 to 85°C environments
  • Includes a 5 m cable for flexible use
In Stock Low Stock Out Of Stock Please See Attributes

Specifications

Cable Cross Section (mm&#178;) 0.15
Cable Length (m) 5
Insulation Resistance (MO) 50
Pollution Degree 3 (Industrial Enviroment)
Rated Supply Voltage DC (V) 12 to 24
Enclosure Material PBT
Outputs NPN
Storage Temperature (&#176;C) -40 to +85
Operating Distance (mm) 4
Current Consumption (mA) <15
Output Operation Normally Open
Sensing Range (mm) 0 to 3.3
Net Weight (g) 20
Ambient Temperature (&#176;C) -25 to +70
Resistance to Shock (m/s&#178;) 10000
Withstand Voltage AC (V) 1000 for 1 min
Product Type Rectangular Inductive Proximity Sensor
Brand PANASONIC
Cable Length 5 m
Cable Type 3-core oil, heat and cold resistant cabtyre cable
Degree of Protection IP68, IP68G
Housing Material PBT
Humidity 35-95%
Insulation Resistance 50 MOhm
Operation Indicator Orange LED ON
Operational Temperature -40 to 85 deg C
Rated Current <15 mA
Rated Voltage 12-24 VDC
Relative Humidity 35 to 95%
Sensing Range 0-3.3 mm
Sensor Type Front Sensing
Shock Resistance 10000 ms
Utilisation Category DC-12 or DC-13
Weight 20 g
