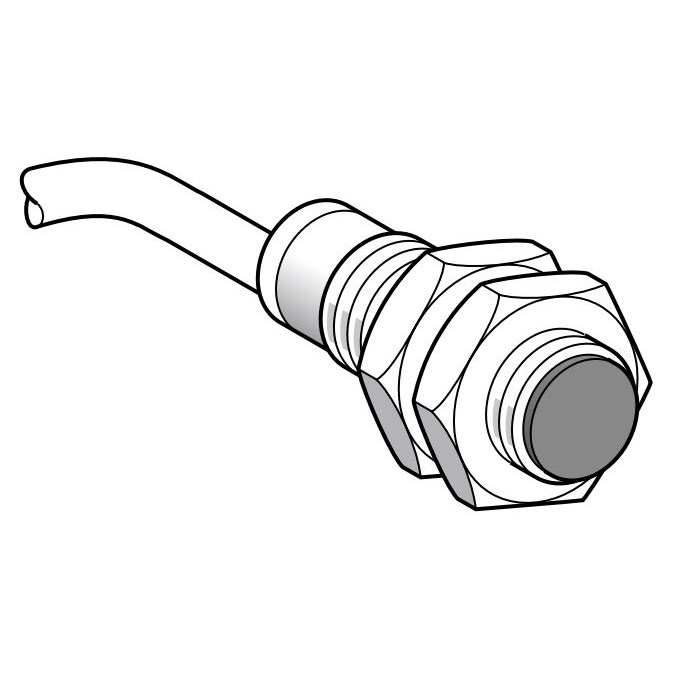

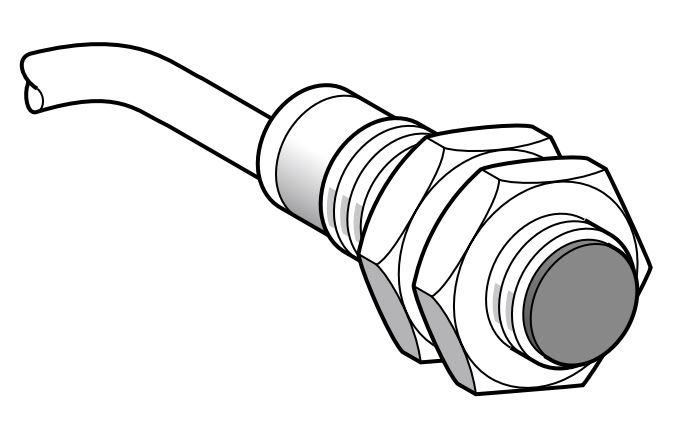

Panasonic GX-M8B Cylindrical Inductive Proximity Sensor NO NPN-Output 2m L Cable

Product Code: GX-M8B

  • Compact proximity sensor with 0-1.2 mm range
  • Operates on 12-24 VDC, under 10 mA current
  • Durable nickel-plated brass housing
  • IP67 protection for harsh environments
  • Yellow LED indicates operation status
In Stock Low Stock Out Of Stock Please See Attributes

Specifications

Product Type Cylindrical Inductive Proximity Sensor
Brand PANASONIC
Cable Length 2 m
Cable Type 3 core cabtyre
Degree of Protection IP67
Housing Material Nickel Plated Brass
Humidity 50%
Operation Indicator Yellow LED ON
Operational Temperature -40 to 85 deg C
Rated Current <10 mA
Rated Voltage 12-24 VDC
Relative Humidity 50%
Sensing Range 0-1.2 mm
Sensor Type Shielded
Shock Resistance 294 ms
Thread Size M8
Utilisation Category DC-12 or DC-13
Weight 40 g

Description

<p>When it comes to precision and reliability in industrial and commercial environments, this Proximity Sensor stands out with its robust features. Designed for those who demand accuracy and durability, this sensor is engineered to meet the technical needs of professionals across various sectors.</p><p>The sensor offers a compact sensing range of 0-1.2 mm, making it ideal for applications requiring precise distance measurement. Operating on a rated voltage between 12-24 VDC and consuming less than 10 mA current, it ensures energy efficiency without compromising performance.</p><p>Constructed from nickel-plated brass, the housing not only provides excellent corrosion resistance but also withstands challenging environmental conditions. This makes it suitable for use in demanding industrial settings where durability is paramount.</p><p>With an IP67 degree of protection, the sensor is fully protected against dust ingress and can withstand immersion in water up to 1 meter deep for a limited time. This level of protection ensures that the device continues to function reliably even in harsh conditions.</p><p>The operational temperature range extends from -40&amp;#176;C to 85&amp;#176;C, allowing the sensor to perform effectively across a wide array of climatic conditions—whether it&amp;#39;s freezing cold or scorching heat. Additionally, the humidity tolerance at 50% further enhances its adaptability in varying environments.</p><p>Weighing just 40 grams, this lightweight design simplifies installation while maintaining robustness. The shock resistance rating of 294 ms adds another layer of reliability by ensuring stable operation even when subjected to mechanical shocks or vibrations common in industrial settings.</p><p>Equipped with a generous cable length of 2 meters, installation flexibility is maximized as it allows easy connection within control systems without needing additional extensions. The yellow LED operation indicator provides clear visual confirmation when the sensor is active—a simple yet effective feature that aids troubleshooting and maintenance efforts.</p><p>In summary, this proximity sensor combines precision with ruggedness through thoughtful engineering suited for technical applications where accuracy is non-negotiable. Its blend of efficient power usage, durable construction materials, comprehensive environmental protections (IP67), broad operating temperature range (-40&amp;#176;C to +85&amp;#176;C), shock resilience (294 ms), and practical features like an integrated LED indicator make it an asset in any professional toolkit looking for reliable proximity detection solutions.</p>

Documents

  • IPD Product Catalogue

    IPD Product Catalogue V17
