Specifications

Cable Length (m)	2
Pollution Degree	3 (Industrial Enviroment)
Rated Supply Voltage DC (V)	12 to 24
Enclosure Material	Brass (Nickel plated)
Outputs	NPN
Storage Temperature (°C)	-40 to +85
Operating Distance (mm)	1.5
Current Consumption (mA)	<10
Output Operation	Normally Open
Sensing Range (mm)	0 to 1.2
Withstand Voltage AC (V)	500 for 1 minute
Net Weight (g)	40
Ambient Temperature (°C)	-25 to +70
Resistance to Shock (m/s²)	294

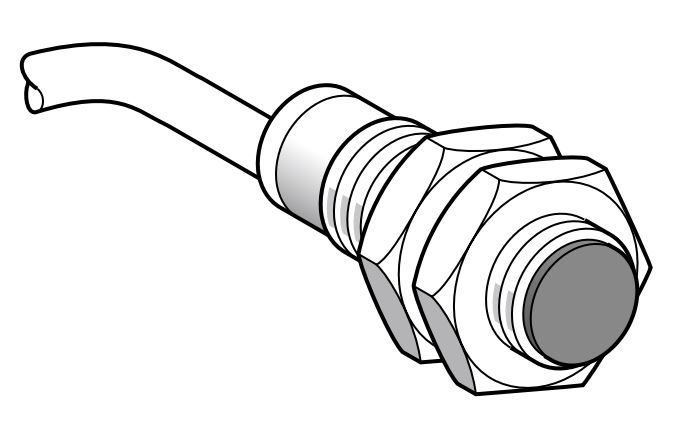

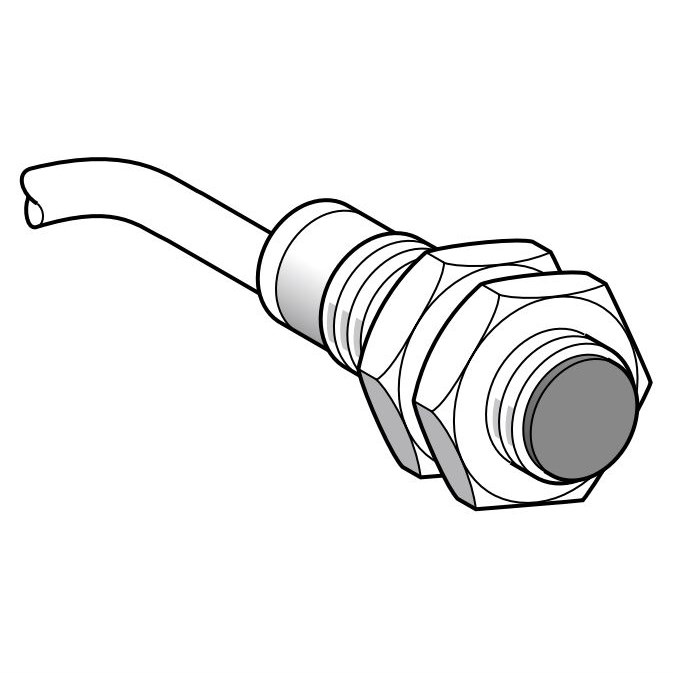

Product Type	Cylindrical Inductive Proximity Sensor
Brand	PANASONIC
Cable Length	2 m
Cable Type	3 core cabtyre
Degree of Protection	IP67
Housing Material	Nickel Plated Brass
Humidity	50%
Operation Indicator	Yellow LED ON
Operational Temperature	-40 to 85 deg C
Rated Current	<10 mA
Rated Voltage	12-24 VDC
Relative Humidity	50%
Sensing Range	0-1.2 mm
Sensor Type	Shielded
Shock Resistance	294 ms
Thread Size	M8
Utilisation Category	DC-12 or DC-13
Weight	40 g
