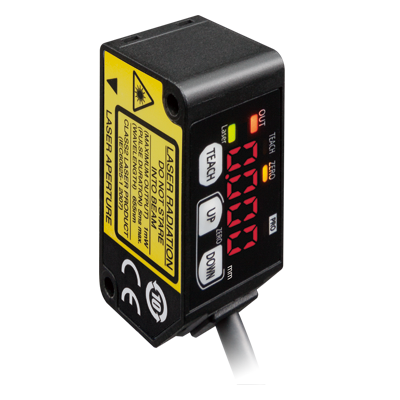

Panasonic HG-C1030-P Self Monitoring Distance Sensor +/-5mm Sensing 12-24VDC PNP Analog Output 2m L Cable

Product Code: HG-C1030-P

  • 4-20 mA and 0-5 V analog signals
  • Sensing range of +/-5 mm
  • Rated voltage: 12-24 VDC
  • Durable die-cast aluminium housing
  • IP67 protection rating
In Stock Low Stock Out Of Stock Please See Attributes

Specifications

Analogue Signal - Current (mA) 4 to 20
Analogue Signal - Voltage (V) 0 to 5
Rated Voltage DC (V) 12 to 24
Measurement Center Distance (mm) 30
Output Operation Light-ON or Dark-ON
Sensing Range (mm) ±5
Product Type Self Monitoring Distance Sensor
Brand PANASONIC
Analogue Signal - Current 4-20 mA
Analogue Signal - Voltage 0-5 V
Degree of Protection IP67
Housing Material Die Cast Aluminium Enclosure, Acrylic Front Cover
Humidity 35-85%
Output Type PNP Analog
Rated Voltage 12-24 VDC
Sensing Range +/-5 mm
Shock Resistance 500 m/sq-s
Vibration Resistance 10-55 Hz
