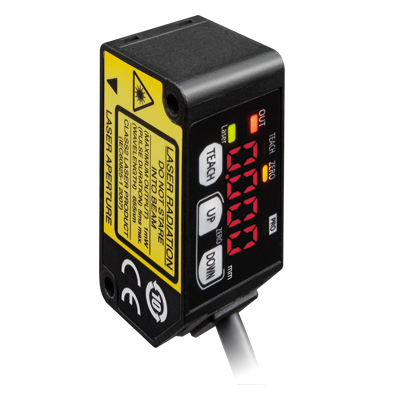

Panasonic HG-C1030 Self Monitoring Distance Sensor +/-5mm Sensing 12-24VDC NPN Analog Output 2m L Cable

Product Code: HG-C1030

  • Sensing range of +/-5 mm
  • Output: 4-20 mA, 0-5 V
  • Rated Voltage: 12-24 VDC
  • Durable die-cast aluminium housing
  • IP67 protection against dust and water
In Stock Low Stock Out Of Stock Please See Attributes

Specifications

Analogue Signal - Current (mA) 4 to 20
Analogue Signal - Voltage (V) 0 to 5
Rated Voltage DC (V) 12 to 24
Measurement Center Distance (mm) 30
Output Operation Light-ON or Dark-ON
Sensing Range (mm) ±5
Product Type Self Monitoring Distance Sensor
Brand PANASONIC
Analogue Signal - Current 4-20 mA
Analogue Signal - Voltage 0-5 V
Degree of Protection IP67
Housing Material Die Cast Aluminium Enclosure, Acrylic Front Cover
Humidity 35-85%
Output Type NPN Analog
Rated Voltage 12-24 VDC
Sensing Range +/-5 mm
Shock Resistance 500 m/sq-s
Vibration Resistance 10-55 Hz

Documents

  • IPD Product Catalogue

    IPD Product Catalogue V17
