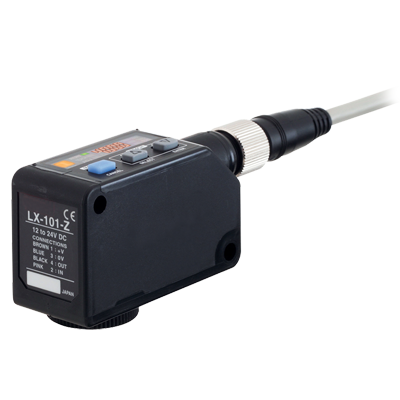

Panasonic LX-101-Z Digital Mark Sensor 12-24VDC 10mm Sensing

Product Code: LX-101-Z

  • Compact optical sensor with 10mm range
  • Operates on 12-24 VDC, NPN output
  • Durable IP67-rated PB enclosure
  • Functions in -10 to 55°C environments
  • Shock resistant up to 500 m/s²
In Stock Low Stock Out Of Stock Please See Attributes

Specifications

Sensing Range (mm) 10 ±3
Rated Voltage DC (V) 12 to 24
Product Type Digital Mark Sensor
Brand PANASONIC
Degree of Protection IP67
Housing Material PB Enclosure, Polycarbonate Display Cover, Silicone Rubber Operation Buttons
Humidity 10-95%
Illuminance 3000 lx
Operational Temperature -10 to 55 deg C
Output Type NPN Transistor
Rated Voltage 12-24 VDC
Sensing Range 10 mm
Shock Resistance 500 m/sq-s

Documents

  • IPD Product Catalogue

    IPD Product Catalogue V17
