Specifications

Product Type	Sensor
Brand	Panasonic
Series	PM
Cable Length	1 m
Max. Switching Distance	2.5-8mm
Sensing Type	Photoelectric
Type of Switching Output	PNP-Output
Indication	Light-ON, Dark-ON
Electrical Connection	Cable
Illumination	1000 lx
Light Source	Infrared LED (Peak emission wavelength: 855 nm 0.034 mil, non-modulated)
Output Type	PNP
Rated Current	15 mA
Rated Voltage	5-24VDC
Housing Material	PBT Enclosure, Polycarbonate Display Section
Material	Enclosure: PBT Display section: Polycarbonate
Shock Resistance acc. To IEC/EN 60068-2-27	15000 m/sq-s
Operating Temperature without Derating	-25 to +55 ?
Pollution Degree	3
Humidity	5-85%
Operating Temperature	-25 to +55 ?
IP Rating	IP64 (IEC)
Standards and Approvals	CE, RoHS, UL/cUL Recognition

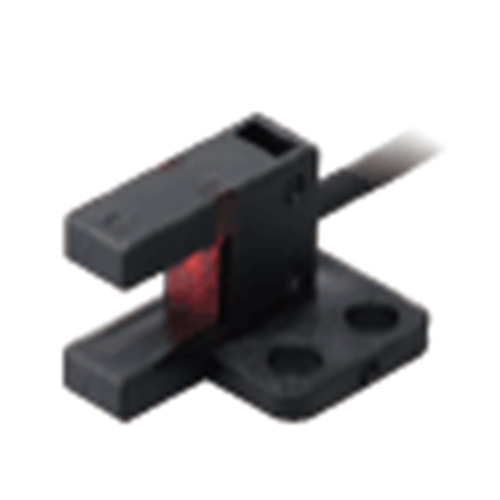

Panasonic PM-F45-P Amplifier Built-In/U-Shaped Micro Photoelectric Sensor 5-24VDC 2.5-8mm Sensing 1m L Cable PNP-Output
