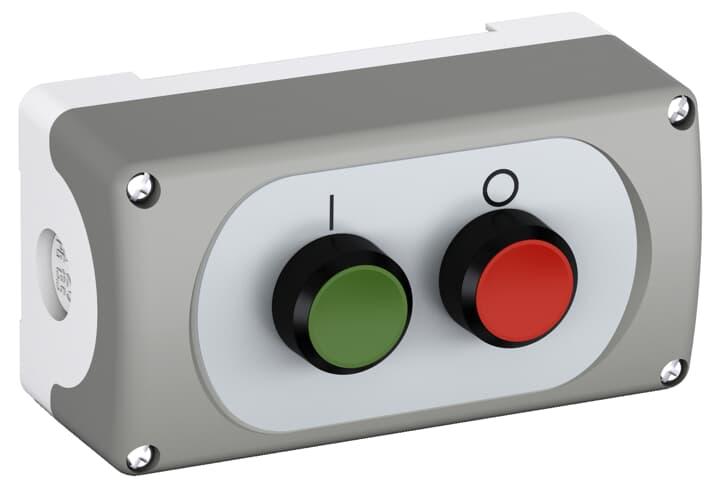

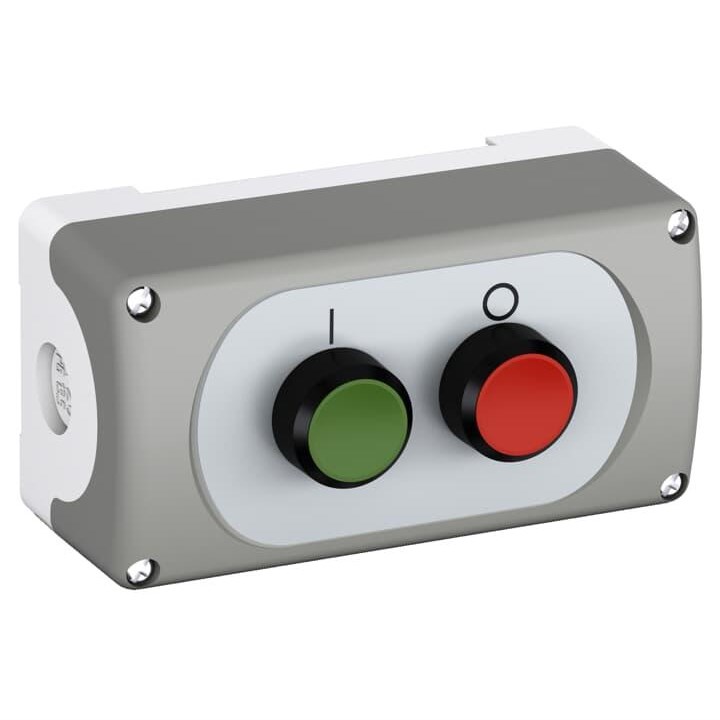

ABB MEP2-1001 Pushbutton Station Dark Grey/Light Grey Plastic 141W 75H 75D 1NC+1NO Momentary

Product Code: MEP2-1001

  • Wide voltage range: 24-690 VAC/VDC
  • High protection: IP66, IP20 rated
  • Durable plastic construction
  • Compact size: 141x75x75 mm
  • Operates in -25 to 70°C range
In Stock Low Stock Out Of Stock Please See Attributes

Specifications

Contacts 1NC + 1NO
Dimensions (mm) 141W x 75H x 75D
Operational Temperature Range (°C) -25 to 70
Rated Operational Voltage AC/DC (V) 24 - 690
Storage Temperature Range (°C) -40 to 85
Product Type Enclosure Assembled Station
Brand ABB
Colour Dark Grey, Light Grey
Contact Configuration 1NC+1NO
Degree of Protection IP66, IP20
Depth 75 mm
Height 75 mm
Housing Material Plastic
Material Plastic
Mode of Operation Momentary
Net Weight 0.079 kg
Operational Temperature -25 to 70 deg C
Rated Operational Voltage 24-690 VAC, VDC
Storage Temperature -40 to 85 deg C
Width 141 mm

Description

The Pushbutton station is a 2-seat plastic device in Dark/Light Grey. It features 2 flush pushbuttons that are momentary and have 1 normally open (NO) and normally closed (NC) contact. The station is made from modular plastic materials.
