Specifications

Dimensions (mm)	143 x 150 x 150
Operational Temperature Range (°C)	-40 to +55
Rated Voltage AC (V)	230
Weight (kg)	AC - 2.15 , DC - 1.95
Sound Pressure Level (dBA)	114
Current Consumption (A)	0.06

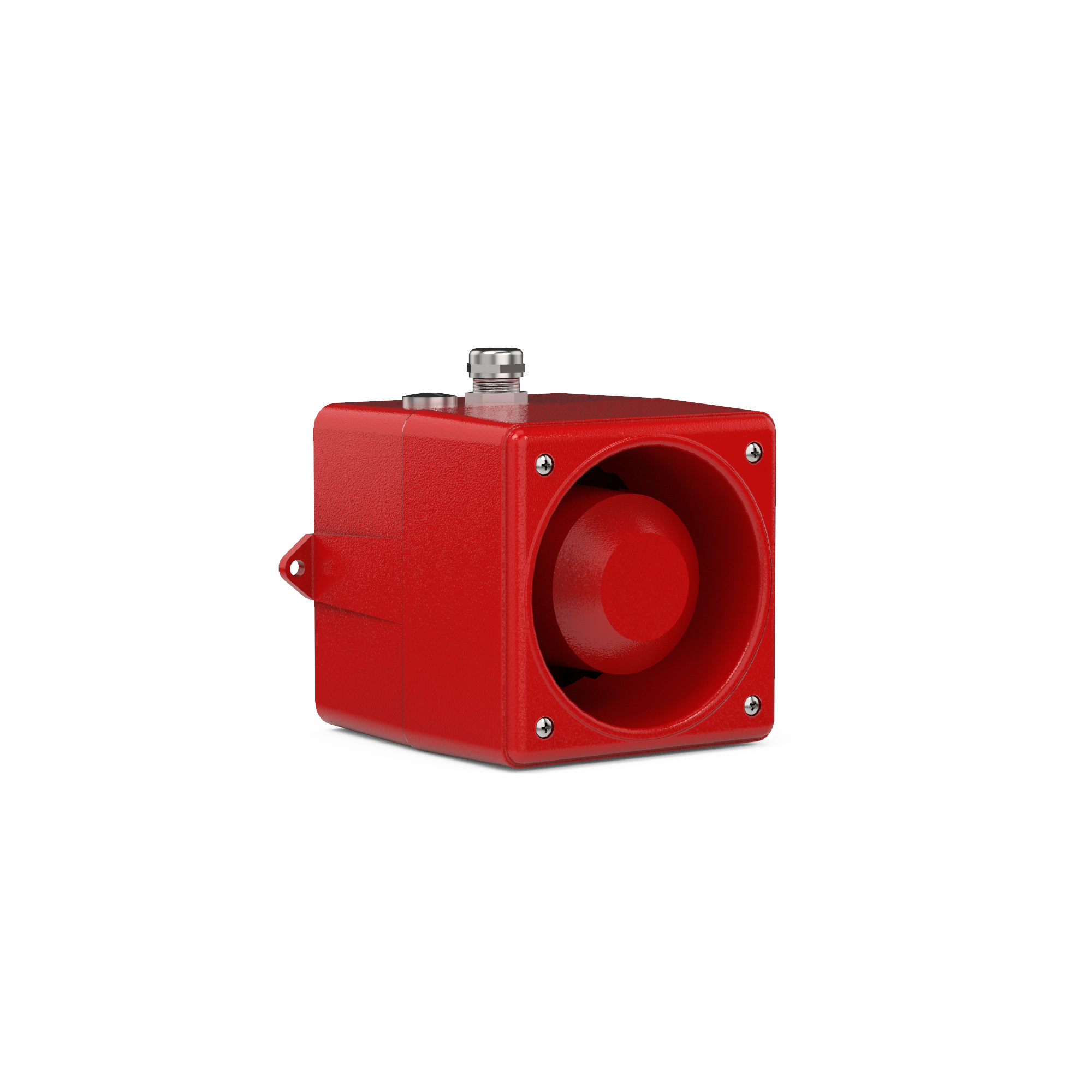

Product Type	Flashing Sounder
Brand	PFANNENBERG
Bezel Type	Metal
Housing Material	Die-Cast Aluminium GD-AI Si12 Cu
Illumination	Illuminated
Lamp Base	BA9S
Lamp Colour	Red
Operational Temperature	-30 to 70 deg C
Rated Current	20 mA
Rated Voltage	12 VAC/VDC
Service Life	100000 hrs
Standards and Approvals	CAN/CSA C22.2 #14, IEC/EN 60947-1, IEC/EN 60947-5-1, UL 508
Storage Temperature	-40 to 70 deg C
Suitable For Use With	Power Supply
Weight	0.002 kg
