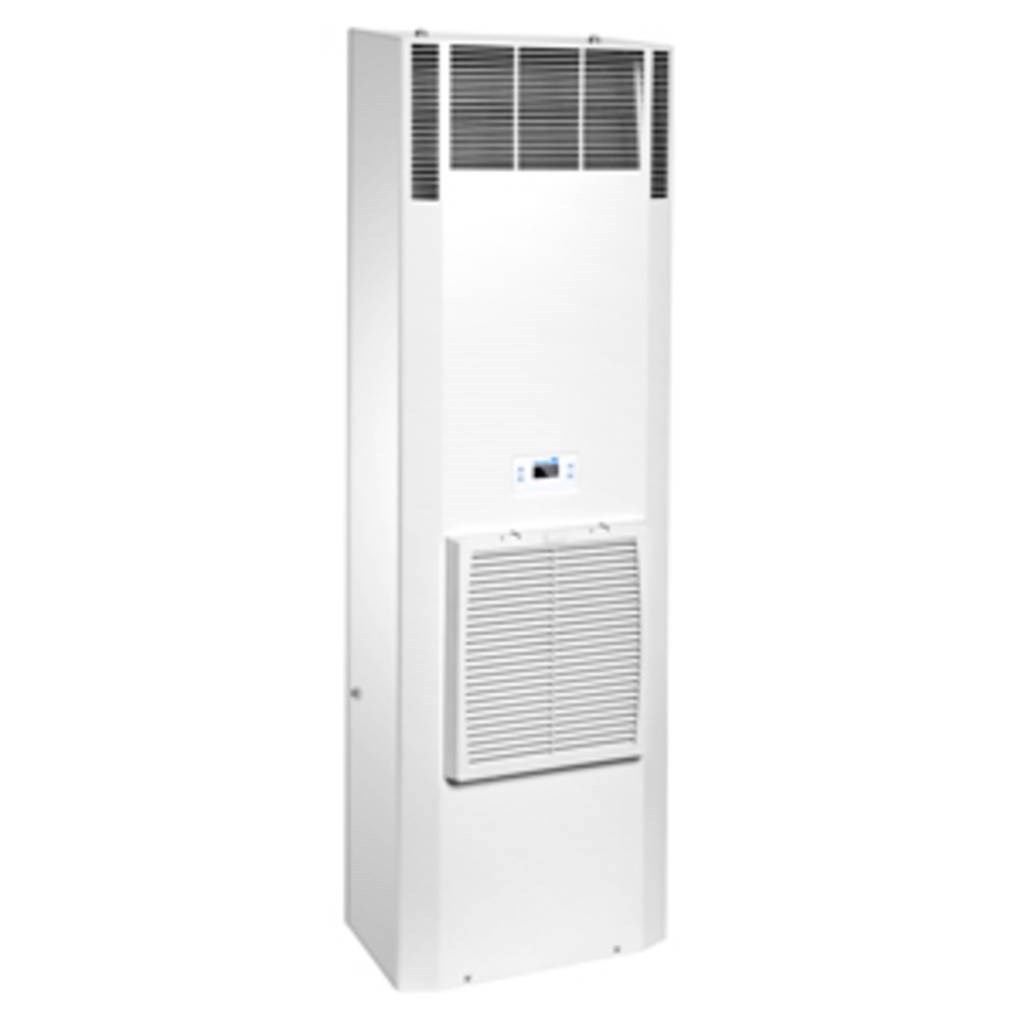

Pfannenberg 13088391066 DTS Wall Mount Cooling Unit 400VAC 1500W IP54 Light Grey RAL7035

Product Code: 13088391066

  • Cooling capacity of 1500 W
  • Rated voltage range: 360-440 VAC
  • IP54 protection for reliable use
  • Door/side mounting flexibility
  • Galvanized steel with powder coat finish
In Stock Low Stock Out Of Stock Please See Attributes

Specifications

Product Type Side/Wall Mount Cooling Unit
Brand PFANNENBERG
Series DTS
Ambient Temperature 15 to 55 deg C
Colour Light Grey RAL 7035
Cooling Capacity 1500 W
Cover Material Electrostatically Powder Coated
Degree of Protection IP54
Depth 200 mm
Height 1350 mm
Housing Material Galvanised sheet steel
Material Galvanized Sheet Steel
Mounting Type Door/Side
Noise Level <=65 dBA
Operational Temperature 15 to 55 deg C
Power Consumption 632 W
Rated Current 3.48 A,2.45 A
Rated Frequency 50/60 Hz
Rated Operational Voltage 360-440 VAC
Rated Voltage 400 VAC
Terminal Type Spring
Unimpeded Airflow - External 1000 cu-m/h
Unimpeded Airflow - Internal 1000 cu-m/h
Width 400 mm

Description

<p>The DTS series product is a robust choice for industrial and commercial applications, offering reliable performance with its solid technical specifications. Designed to meet the needs of demanding environments, it provides a cooling capacity of 1500 W while maintaining energy efficiency with a power consumption of just 632 W. This makes it an ideal solution for ensuring optimal temperature control in various settings.</p><p>With unimpeded airflow rates of 1000 cubic meters per hour both externally and internally, this unit guarantees effective ventilation, contributing to the maintenance of stable internal conditions. The rated voltage range spans from 360 to 440 VAC and operates at frequencies between 50/60 Hz, allowing flexibility across different electrical systems. It handles rated currents efficiently at either 3.48 A or 2.45 A depending on operational requirements.</p><p>Durability is assured with an IP54 degree of protection, safeguarding against dust ingress and water splashes from any direction. The unit&amp;#39;s construction features galvanized sheet steel for enhanced strength and longevity, complemented by an electrostatically powder-coated cover in light grey RAL 7035 that adds aesthetic appeal while providing additional corrosion resistance.</p><p>Installation versatility is offered through door or side mounting options, accommodating diverse spatial configurations in facilities. The dimensions are practical yet substantial: width measures at 400 mm, height at 1350 mm, and depth at 200 mm—making it suitable for integration into various setups without occupying excessive space.</p><p>For ease of connection and reliability over time, spring-type terminals are employed in this design. Operational noise levels are maintained below or equal to 65 dBA ensuring minimal disruption in work environments where quiet operation might be valued.</p><p>Temperature resilience is another key feature; this product can operate effectively within ambient temperatures ranging from as low as 15&amp;#176;C up to a high of 55&amp;#176;C—catering well to fluctuating thermal conditions typical in many industrial settings.</p><p>Overall, the DTS series presents itself as a dependable option characterized by its efficient cooling capabilities combined with steadfast construction quality—meeting the practical demands faced by professionals seeking reliable climate control solutions within their operations.</p>
