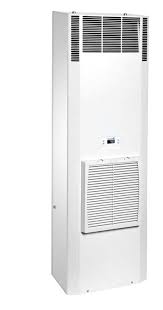

PFANNENBERG DTS 8541E 230V CSC 7035 CM, 2500W, IP54 WALL MOUNTED COOLING UNIT 13088590066

Product Code: 13088590066

Explore the Pfannenberg DTS Series cooling units, designed for optimal thermal management. These units offer a cooling capacity ranging from 300 to 2500 W in accordance with EN 14511 (A35/A35) standards. They are versatile with a rated voltage of either 230 VAC or 400 VAC, featuring an integrated condensate management system (*CM). The airflow is robust and unimpeded, boasting internal rates of 224 to 1520 m³/h and external rates up to 1520 m³/h. Engineered for reliability, they operate within a control range of +25°C to +45°C and are built to IP54 standards, ensuring protection against dust and water splashes. Finished in RAL 7035, these cooling units blend seamlessly into industrial environments while maintaining efficiency and performance. Trust in the quality that Pfannenberg brings to thermal management solutions.

Technical Specifications

Colour RAL7035
Housing Material Galvanised sheet steel
Maximum Temperature (°C) 55
Minimum Temperature (°C) 15
Brand PFANNENBERG
Series DTS
Ambient Temperature Range (°C) +15 to +55
Mounting Type Door/Side
Cooling Capacity (W) 2500
Cover Steel powder coated
Current Consumption (A) 7.9
Noise Level (dBA) ≤67
Power Consumption (W) 1068
Rated Frequency (Hz) 50/60
Rated Maximum Operational Voltage AC (V) 253
Rated Minimum Operational Voltage AC (V) 207
Rated Operational Power (kW) 2.5
Rated Voltage AC (V) 230± 10%
Starting Current (A) 18.4
Terminal Type Spring-type
Dimensions (mm) 400W X 1350H X 200D
Unimpeded Airflow - External 1490
Unimpeded Airflow - Internal 1490
Degree of Protection IP54
