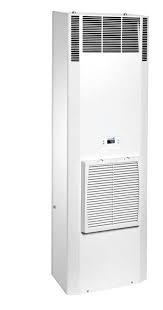

PFANNENBERG DTS 8541E 400V 2~ CSC 7035 CM, 2500W, IP54 WALL MOUNTED COOLING UNIT 13088591066

Product Code: 13088591066

Explore the Pfannenberg DTS Series Cooling Units, designed for efficient thermal management in industrial environments. These units offer a cooling capacity ranging from 300 to 2500 W, compliant with EN 14511 (A35/A35) standards. They are versatile with a rated voltage of either 230 VAC or 400 VAC, featuring an integrated condensate management system (*CM). The airflow is robust and unimpeded, with internal rates between 224 to 1520 m³/h and external rates matching up to 1520 m³/h. Engineered to operate within a control range of +25°C to +45°C and built to IP54 standards, these cooling units ensure protection against dust and water ingress. Finished in RAL 7035, they blend seamlessly into industrial settings while maintaining optimal performance. Trust Pfannenberg's expertise in thermal management solutions for reliable and effective temperature control.

Technical Specifications

Colour RAL7035
Housing Material Galvanised sheet steel
Maximum Temperature (°C) 55
Minimum Temperature (°C) 15
Brand PFANNENBERG
Series DTS
Ambient Temperature Range (°C) +15 to +55
Mounting Type Door/Side
Cooling Capacity (W) 2500
Cover Steel powder coated
Current Consumption (A) 7
Noise Level (dBA) ≤67
Power Consumption (W) 1089
Rated Frequency (Hz) 50/60
Rated Maximum Operational Voltage AC (V) 440
Rated Minimum Operational Voltage AC (V) 360
Rated Operational Power (kW) 2.5
Rated Voltage AC (V) 400± 10%
Starting Current (A) 18.4
Terminal Type Spring-type
Dimensions (mm) 400W X 1350H X 200D
Unimpeded Airflow - External 1490
Unimpeded Airflow - Internal 1490
Degree of Protection IP54
