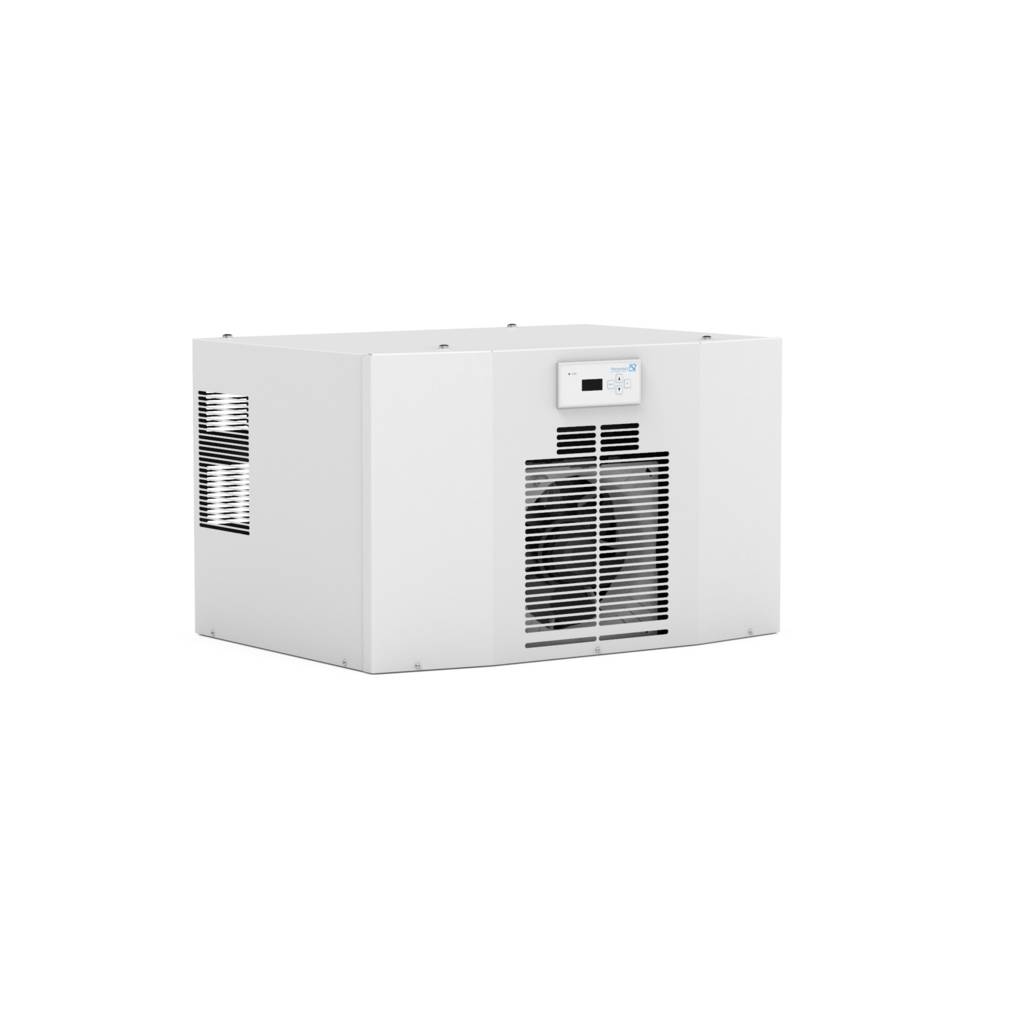

Pfannenberg 13256632055 DTT Top Mount Cooling Unit 400/460VAC 3000W Light Grey RAL7035

Product Code: 13256632055

  • Cooling capacity of 3000 W
  • IP54 protection rating
  • Top mounting type
  • Operates at 400/460 VAC
  • Noise level under 62 dBA
In Stock Low Stock Out Of Stock Please See Attributes

Specifications

Product Type Top Mount Cooling Unit
Brand PFANNENBERG
Series DTT
Ambient Temperature 15 to 55 deg C
Colour Light Grey RAL 7035
Cooling Capacity 3000 W
Degree of Protection IP54
Depth 575 mm
Height 485 mm
Material Galvanized Sheet Steel
Mounting Type Top
Noise Level <62 dBA
Power Consumption 1700 W, 2100 W
Rated Current 3.16-4.5 A
Rated Frequency 50/60 Hz
Rated Voltage 400/460 VAC
Terminal Type Spring
Unimpeded Airflow - External 1970 cu-m/h, 2180 cu-m/h
Unimpeded Airflow - Internal 1420 cu-m/h, 1530 cu-m/h
Weight 75 kg
Width 795 mm

Description

<p>The DTT series offers a robust solution for cooling needs with its reliable performance and durable construction. Designed for industrial and commercial applications, this unit delivers a cooling capacity of 3000 W, making it suitable for environments where efficient temperature regulation is crucial.</p><p>With power consumption options of 1700 W or 2100 W, the DTT series provides flexibility in energy use without compromising on performance. Its unimpeded airflow capabilities are impressive, offering an external range between 1970 cu-m/h and 2180 cu-m/h and internal airflow from 1420 cu-m/h to 1530 cu-m/h. This ensures optimal air circulation for effective cooling.</p><p>Operating at a rated voltage of 400/460 VAC and frequency of 50/60 Hz, the DTT series supports various electrical systems. It also operates within a current range of 3.16-4.5 A, providing versatility across different setups. The unit&amp;#39;s IP54 degree of protection highlights its resilience against dust and water splashes, ensuring longevity in demanding conditions.</p><p>The top-mounted design allows for easy integration into existing systems while maintaining space efficiency. Constructed from galvanized sheet steel, the DTT series promises durability along with corrosion resistance—a vital feature in industrial settings.</p><p>Installation is straightforward with spring-type terminals facilitating quick connections. Measuring at a width of 795 mm, height of 485 mm, and depth of 575 mm, the compact dimensions make it adaptable to various installation sites without overwhelming available space.</p><p>Finished in light grey RAL 7035, the unit blends seamlessly into most environments while maintaining a professional appearance. Despite its powerful functionality, it operates at noise levels below &amp;lt;62 dBA—ideal for maintaining workplace comfort without disruptive sound interference.</p><p>Designed to function optimally within ambient temperatures ranging from 15 to 55 degrees Celsius, this product meets diverse climate demands effectively. Weighing in at approximately 75 kg, it&amp;#39;s substantial yet manageable during installation or maintenance tasks.</p><p>Overall, the DTT series is engineered to meet high standards required by technical professionals seeking reliable cooling solutions that balance performance with energy efficiency—all wrapped up in a durable package suited for rigorous use cases.</p>
