Specifications

Operational Temperature Range (°C)	-40 to +55
Rated Voltage DC (V)	24
Weight (kg)	2.221
Sound Pressure Level (dBA)	122
Current Consumption (A)	0.68 - 1.48 (For 10J)
Type of Mounting	Base Mount

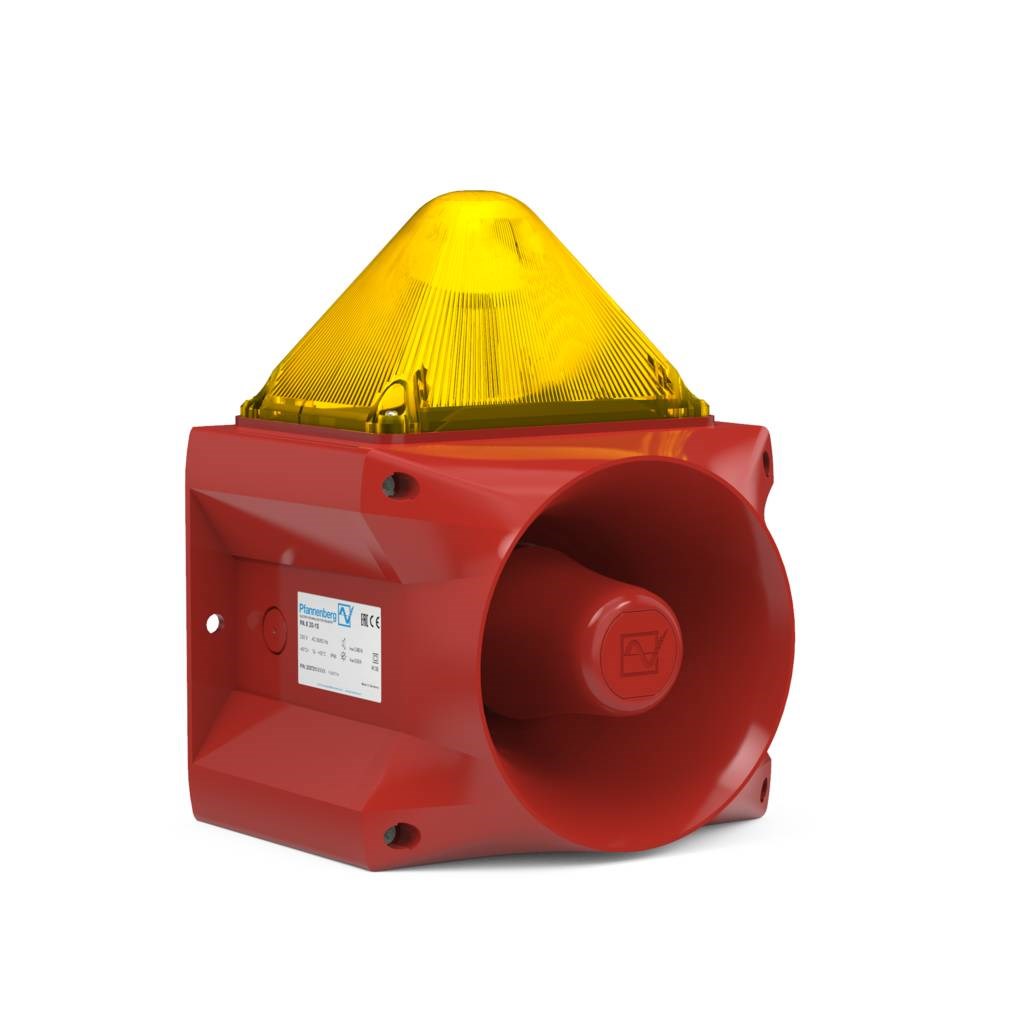

Product Type	Flashing Sounder
Brand	PFANNENBERG
Actuating Speed	1 m/s
Actuator Material	Stainless Steel
Actuator Type	Rod Lever
Ambient Temperature	80 deg C
Cable Cross Section	1 sq-mm
Connection Type	M12 Plug, 4 Pole
Contact Configuration	1NO+1NC
Contact Material	Silver
Degree of Protection	IP3, IP67
Depth	60 mm
Height	85 mm
Housing Colour	Similar to RAL 3000 (Flame Red)
Housing Material	Nickel Plated Brass
Length	10 m
Material	Glass Fibre Reinforced Thermoplastic
Mechanical Life	3 million Operations
Mounting Type	Flange
Number of Auxiliary Contacts	1
Number of Safety Contacts	2
Operational Temperature	-30 to 70 deg C
Operator Material	Aluminium
Rated Current	0.25 A
Rated Frequency	5 Hz
Rated Impulse Withstand Voltage	6 kV
Rated Insulation Voltage	250 V
Rated Voltage	24 VDC
Sensor Height	25 mm
Sensor Length	13 mm
Shock Resistance	110 ms
Standards and Approvals	DIN VDE 0660-208, EN IEC 60947-5-2
Switching Type	Slow Action
Terminal Type	M12
Weight	90 g
