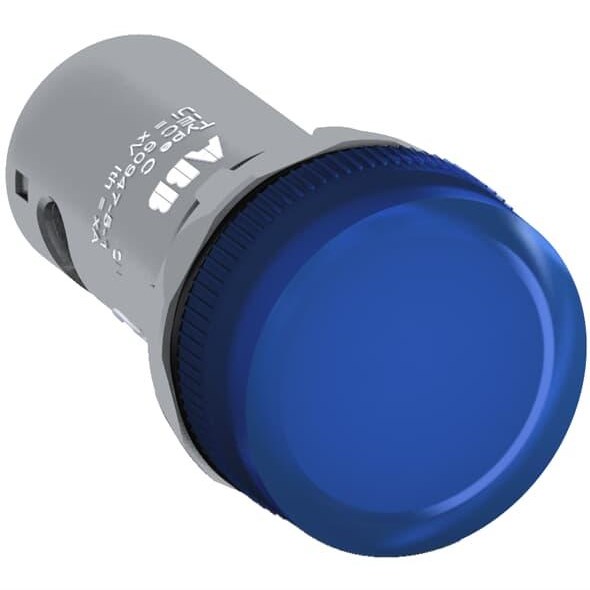

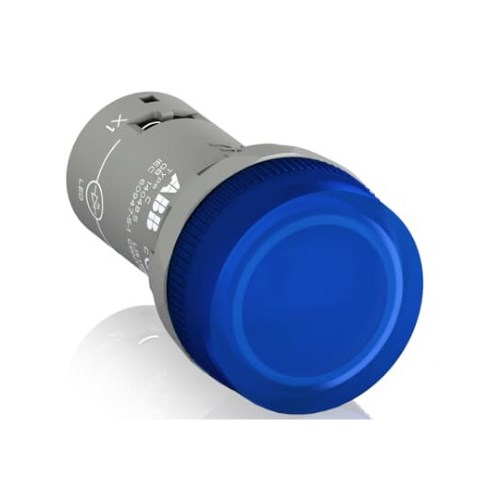

ABB CL2-520L Compact Pilot Light With Intergrated LED Blue 220VDC

Product Code: CL2-520L

  • Operates at 24 VAC/VDC
  • Available in Red, Yellow, Blue
  • Temperature range: -25 to 55°C
  • Protection levels: IP23, IP54, IP65
  • Complies with CE and UL standards
In Stock Low Stock Out Of Stock Please See Attributes

Specifications

Dimensions (mm) 30W X 30H X 52D
Operational Temperature Range (°C) -25 to +70
Rated Frequency (Hz) 50/60
Rated Voltage DC (V) 220
Tightening Torque (Nm) Control Circuit - 0.9
Lamp Not Included
Product Type Compact Pilot Light With Intergrated LED
Brand ABB
Series LD6A
Colour Red, Yellow, Blue
Degree of Pollution IP3
Degree of Protection IP23, IP54, IP65
Housing Colour Dark Grey
Housing Material ABS
Humidity 45-85%
Insulation Resistance 100 MOhm
Lamp Type Not included
LED Colour Blue
Model Integrated LED
Mounting Type Pole
Number of Tiers 3
Operational Temperature -25 to 55 deg C
Rated Insulation Voltage 60 V
Rated Voltage 24 VAC/VDC
Shock Resistance 147 ms
Standards and Approvals CE, cRUus, CSA C22.2 #14, EN60947-5-1, IEC60947-5-1, UL508
Terminal Type Screw Terminals
Vibration Resistance 10-55 Hz
Weight 815 g

Description

The Pilot Light with integrated LED Blue 220VDC from the Compact range is a high-quality product designed for engineers. This pilot light features an integrated LED in a vibrant blue colour, providing clear and visible indication. It operates at a voltage of 220VDC, ensuring reliable performance. Please note that the lamp is not included with this product.

Documents

  • IPD Product Catalogue

    IPD Product Catalogue V17
