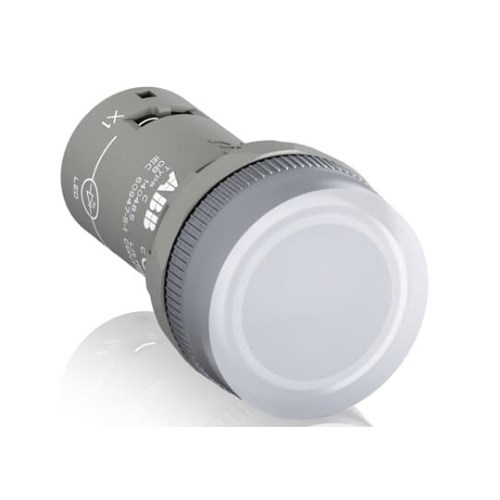

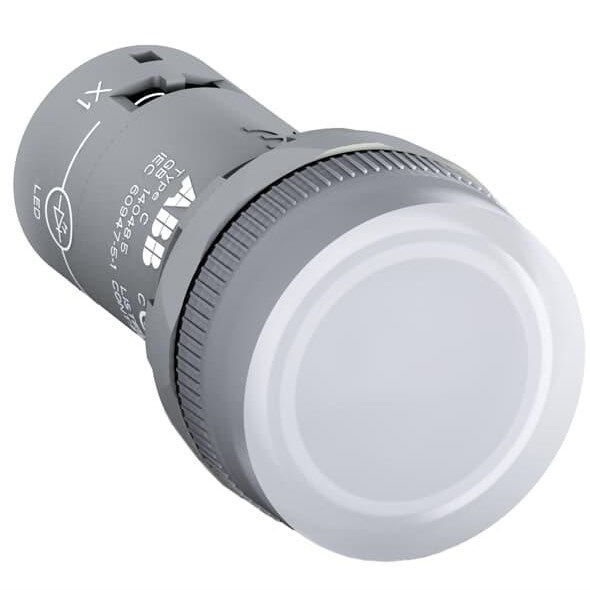

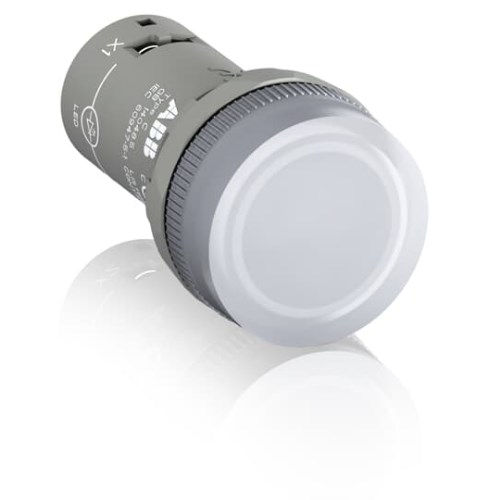

ABB CL2-515C Compact Pilot Light With Intergrated LED Clear 110-130VDC

Product Code: CL2-515C

  • Versatile voltage: 24 VAC/VDC operation
  • Available in red, yellow, and green
  • Operates in -25 to 55°C temperature range
  • Robust protection: IP23, IP54, IP65 ratings
  • Certified by CE, cRUus, CSA C22.2 #14
In Stock Low Stock Out Of Stock Please See Attributes

Specifications

Dimensions (mm) 30W X 30H X 52D
Operational Temperature Range (°C) -25 to +70
Rated Frequency (Hz) 50/60
Rated Voltage DC (V) 110 - 130
Tightening Torque (Nm) Control Circuit - 0.9
Lamp Not Included
Product Type Compact Pilot Light With Intergrated LED
Brand ABB
Series LD6A
Colour Red, Yellow, Green
Degree of Pollution IP3
Degree of Protection IP23, IP54, IP65
Housing Colour Dark Grey
Housing Material ABS
Humidity 45-85%
Insulation Resistance 100 MOhm
Lamp Type Not included
LED Colour Clear
Model Integrated LED
Mounting Type Frame
Number of Tiers 3
Operational Temperature -25 to 55 deg C
Rated Insulation Voltage 60 V
Rated Voltage 24 VAC/VDC
Shock Resistance 147 ms
Standards and Approvals CE, cRUus, CSA C22.2 #14, EN60947-5-1, IEC60947-5-1, UL508
Terminal Type Screw Terminals
Vibration Resistance 10-55 Hz
Weight 390 g

Description

The Pilot Light with integrated LED Clear is a compact range product designed for engineers. It operates at a voltage of 110-130VDC. Please note that the lamp is not included with this product.
