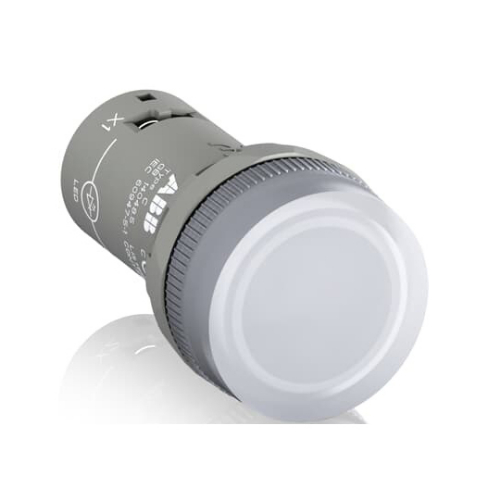

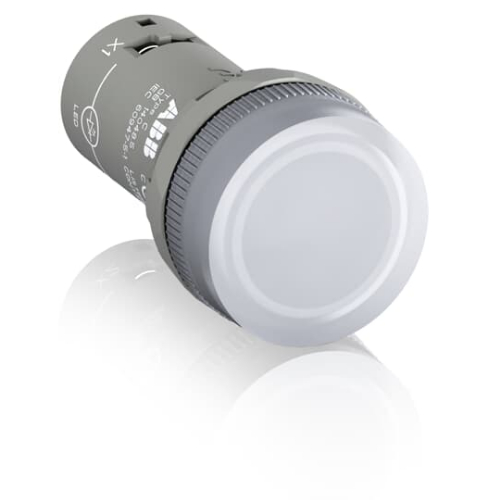

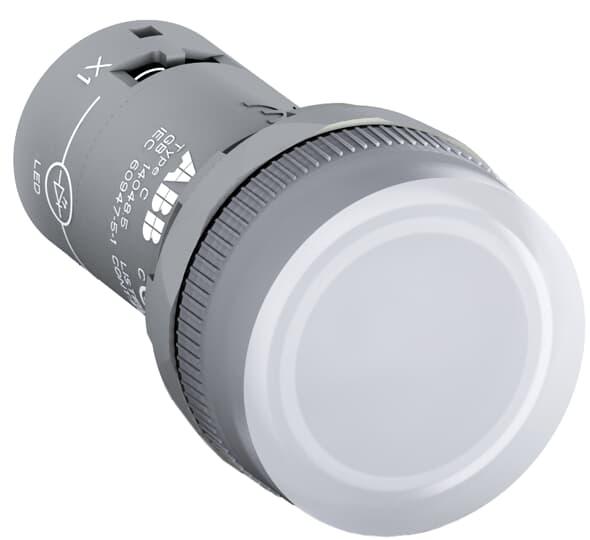

ABB CL2-523C PILOT LIGHT WITH INTERGRATED LED CLEAR 230VAC COMPACT

Product Code: CL2-523C

The Pilot Light with integrated LED Clear 230VAC from the Compact range is a versatile and efficient lighting solution. This product does not include a lamp, but it is designed to work seamlessly with various lamps available in the market. With its clear design and integrated LED technology, this pilot light provides bright illumination while consuming minimal energy. It operates on a voltage of 230VAC, making it suitable for a wide range of applications. Whether you need to indicate the status of a machine or enhance visibility in dark environments, this Pilot Light is an excellent choice.

Technical Specifications

Brand ABB
Degree of Protection IP66 (Front), IP20 (Terminals)
Dimensions (mm) 30W X 30H X 52D
Lamp Not Included
Lamp Type Not included
LED Colour Clear
Model Integrated LED
Operational Temperature Range (°C) -25 to +70
Rated Frequency (Hz) 50/60
Rated Voltage AC (V) 230
Terminal Type Screw Terminals
Tightening Torque (Nm) Control Circuit - 0.9
