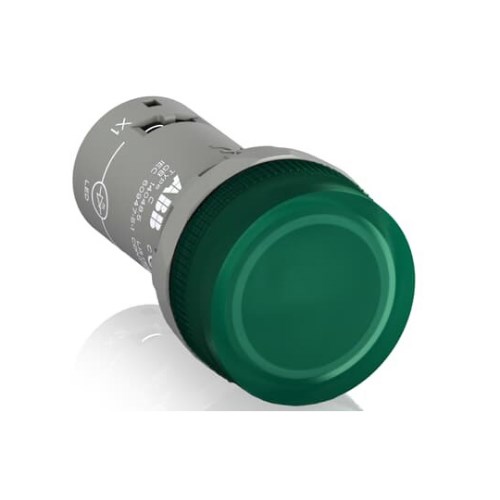

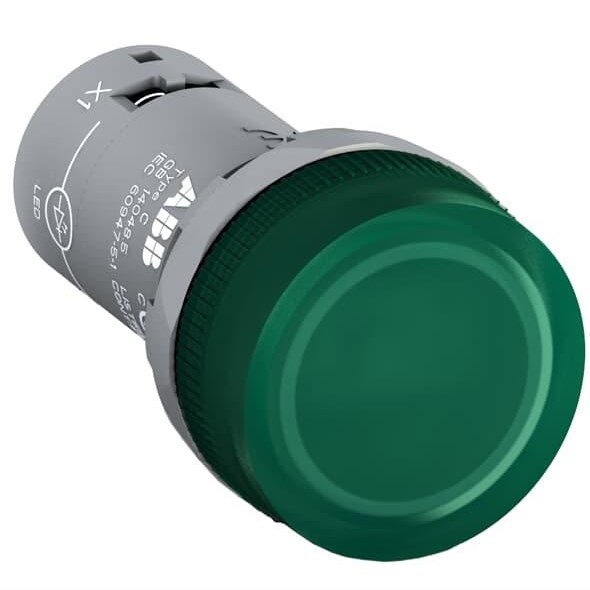

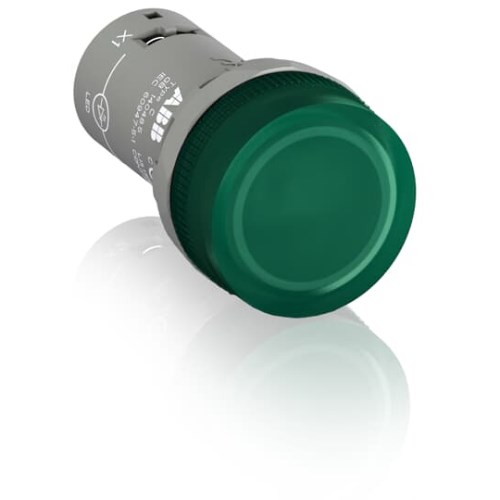

The LD6A Series Pilot Light is a versatile and robust solution for industrial and commercial applications, designed to meet the demanding requirements of technical professionals. Operating efficiently at a rated voltage of 24 VAC/VDC, this pilot light offers reliability in various electrical setups. Available in vibrant red, blue, and green colors, it provides clear visual signals that are crucial for operational safety and efficiency.
Engineered to withstand challenging environmental conditions, the LD6A series operates within an impressive temperature range of -25 to 55 degrees Celsius. Its durability is further enhanced by its compliance with multiple protection standards: IP23 for basic dust protection, IP54 for limited dust ingress and splash resistance, and IP65 for complete dust-tight sealing with water jet resistance. Such versatility makes it suitable for diverse settings where varying levels of protection are required.
The pilot light conforms to rigorous international standards including CE marking, cRUus certification, CSA C22.2 #14 compliance, EN60947-5-1 adherence, IEC60947-5-1 compliance, and UL508 approval. These certifications ensure that the product meets high-quality benchmarks recognized globally.
Designed with direct mounting capability, installation is straightforward and efficient—ideal for environments where time-saving assembly is critical. The housing material made from ABS ensures a strong yet lightweight construction while maintaining excellent insulation properties.
With a vibration resistance rating of 10-55 Hz and shock resistance up to 147 ms duration impacts, the LD6A series can endure mechanical stresses typical in industrial operations without compromising performance or longevity. The rated insulation voltage stands at 60 V which supports safe operation across various systems.
Humidity tolerance ranging from 45% to 85% ensures functionality even in moderately humid conditions—a common scenario in many Australian industrial environments. Additionally, an insulation resistance of 100 MOhm underscores its reliability by preventing unwanted current leakage.
The dark grey housing color not only provides a sleek appearance but also helps minimize visible wear over time—maintaining aesthetic appeal alongside functional integrity. This combination of features makes the LD6A series pilot light an ideal choice for professionals seeking dependable signaling solutions that align with stringent technical specifications.
