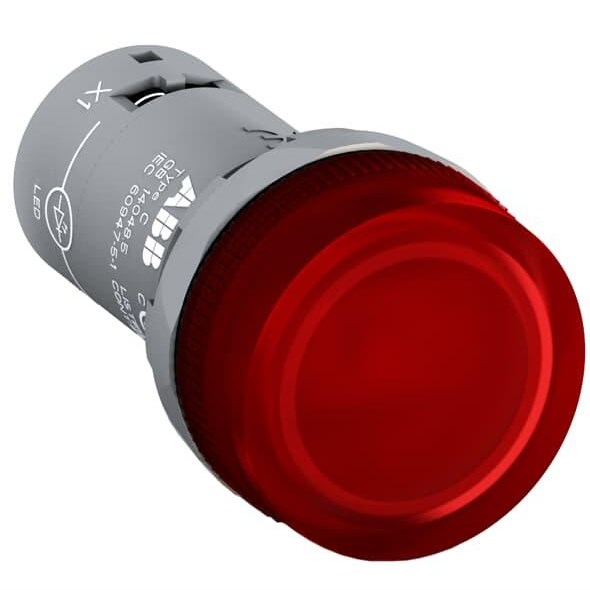

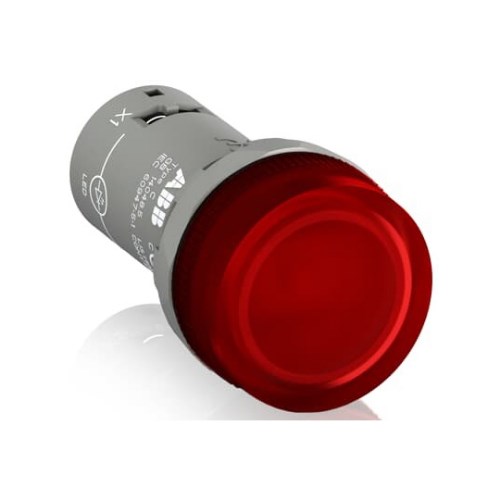

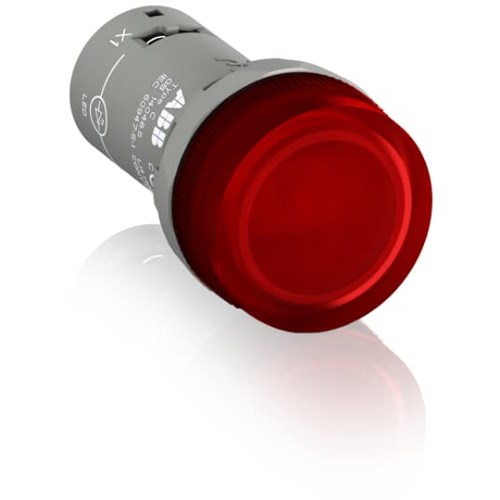

ABB CL2-501R Compact Pilot Light With Intergrated LED Red 12VDC

Product Code: CL2-501R

  • Operates on 24 VAC/VDC
  • Available in yellow and green
  • Direct mounting type for easy installation
  • High protection: IP23, IP54, IP65
  • Meets CE, cRUus, CSA, EN & UL standards
In Stock Low Stock Out Of Stock Please See Attributes

Specifications

Dimensions (mm) 30W X 30H X 52D
Operational Temperature Range (°C) -25 to +70
Rated Frequency (Hz) 50/60
Rated Voltage DC (V) 12
Tightening Torque (Nm) Control Circuit - 0.9
Lamp Not Included
Product Type Compact Pilot Light With Intergrated LED
Brand ABB
Series LD6A
Colour Yellow, Green
Degree of Pollution IP3
Degree of Protection IP23, IP54, IP65
Housing Colour Dark Grey
Housing Material ABS
Humidity 45-85%
Insulation Resistance 100 MOhm
Lamp Type Not included
LED Colour Red
Model Integrated LED
Mounting Type Direct
Number of Tiers 2
Operational Temperature -25 to 55 deg C
Rated Insulation Voltage 60 V
Rated Voltage 24 VAC/VDC
Shock Resistance 147 ms
Standards and Approvals CE, cRUus, CSA C22.2 #14, EN60947-5-1, IEC60947-5-1, UL508
Terminal Type Screw Terminals
Vibration Resistance 10-55 Hz

Description

The Pilot Light with integrated LED Red 12VDC from the Compact range is a versatile and efficient lighting solution. This compact pilot light features an integrated LED that emits a vibrant red light. It operates on a 12VDC power supply, making it suitable for various applications. Please note that the lamp is not included with this product.
