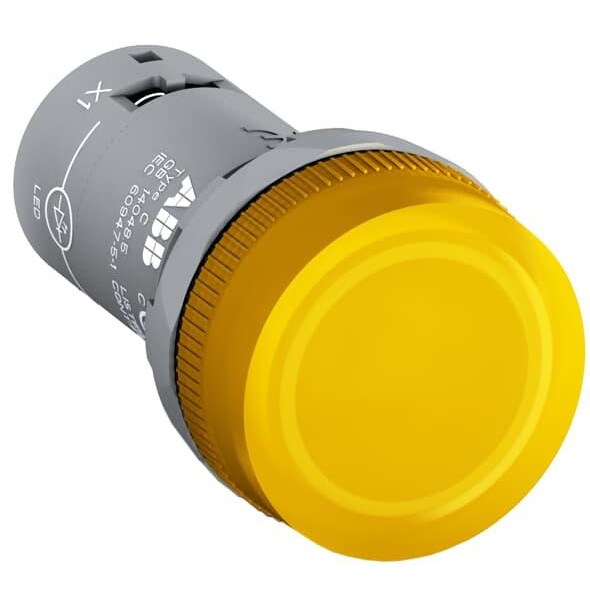

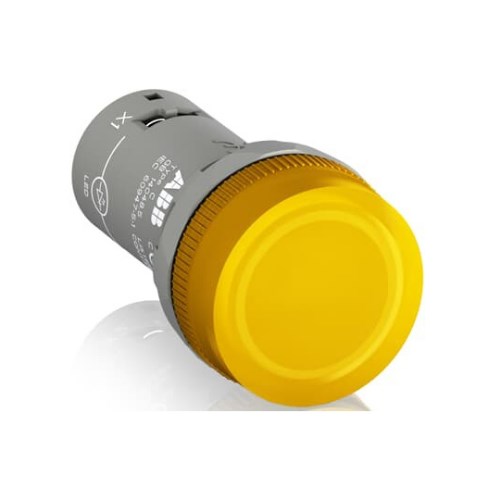

ABB CL2-520Y Compact Pilot Light With Intergrated LED Yellow 220VDC

Product Code: CL2-520Y

  • Operates at 24 VAC/VDC
  • Available in red, yellow, green
  • IP23/IP54/IP65 protection ratings
  • CE, cRUus, CSA, UL certified
  • Wall mountable design
In Stock Low Stock Out Of Stock Please See Attributes

Specifications

Dimensions (mm) 30W X 30H X 52D
Operational Temperature Range (°C) -25 to +70
Rated Frequency (Hz) 50/60
Rated Voltage DC (V) 220
Tightening Torque (Nm) Control Circuit - 0.9
Lamp Not Included
Product Type Compact Pilot Light With Intergrated LED
Brand ABB
Series LD6A
Colour Red, Yellow, Green
Degree of Pollution IP3
Degree of Protection IP23, IP54, IP65
Housing Colour Light Grey
Housing Material ABS
Humidity 45-85%
Insulation Resistance 100 MOhm
Lamp Type Not included
LED Colour Yellow
Model Integrated LED
Mounting Type Wall
Number of Tiers 3
Operational Temperature -25 to 55 deg C
Rated Insulation Voltage 60 V
Rated Voltage 24 VAC/VDC
Shock Resistance 147 ms
Standards and Approvals CE, cRUus, CSA C22.2 #14, EN60947-5-1, IEC60947-5-1, UL508
Terminal Type Screw Terminals
Vibration Resistance 10-55 Hz
Weight 305 g

Description

The Pilot Light with integrated LED Yellow 220VDC from the Compact range is a high-quality product designed for engineers. This pilot light features an integrated LED in a vibrant yellow colour, providing clear visibility. It operates at a voltage of 220VDC, ensuring reliable performance. Please note that the lamp is not included with this product.
