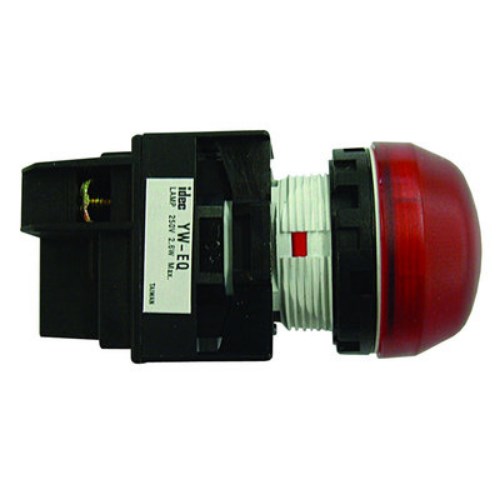

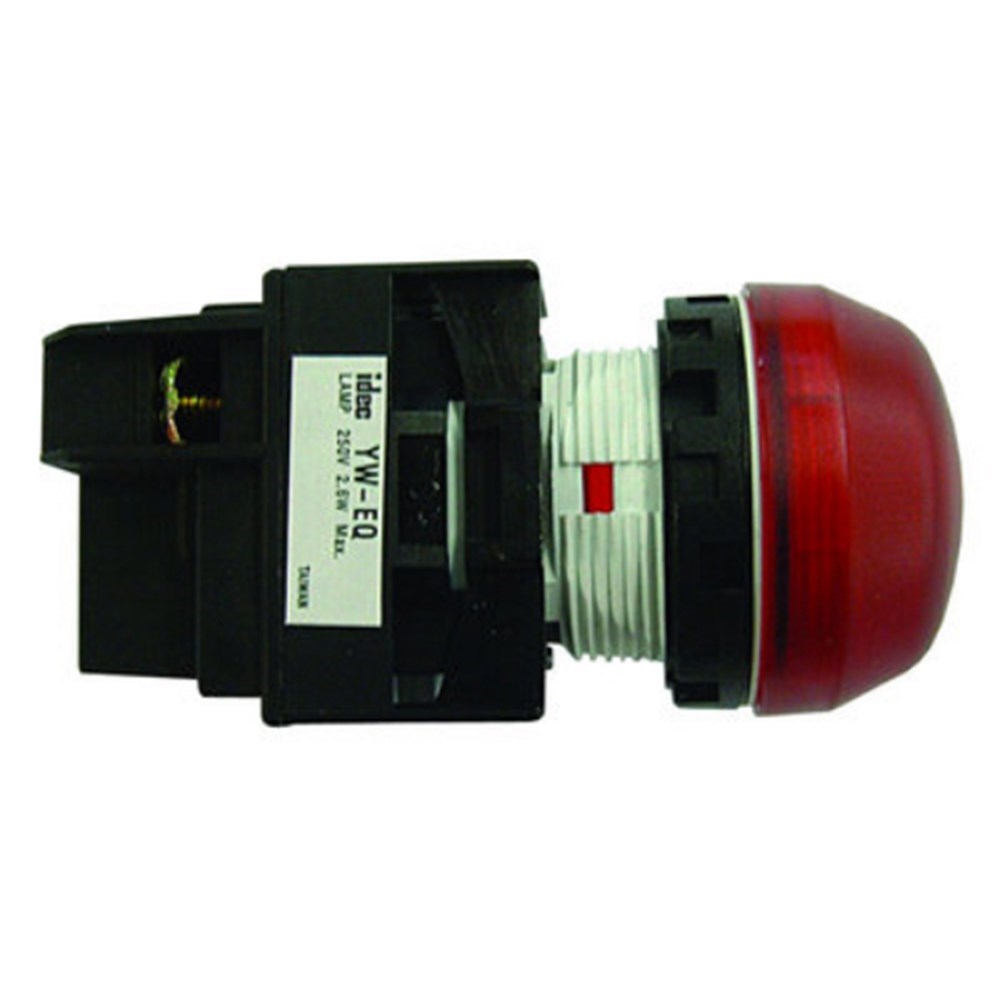

IDEC YW1P-2EQ0A Pilot Light Without Lamp Amber 250VAC 29.8 mm Dia Mount Hole

Product Code: YW1P-2EQ0A

  • Compact size: 9.6mm W x 39.9mm H x 48mm D
  • Wide temp range: -30 to 70°C operational
  • Screw clamp for secure connections
  • Rated insulation voltage up to 690V
  • IP20 protection against solid objects
In Stock Low Stock Out Of Stock Please See Attributes

Specifications

Insulation Resistance (MO) 100
Operational Temperature Range (°C) -20 to +55
Rated Frequency (Hz) 50/60
Rated Voltage AC/DC (V) 250
Mounting Hole Diameter (mm) 22
Lamp Not Included
Product Type Pilot Light Without Lamp
Brand IDEC
Series YW
Ambient Temperature -30 to 70 deg C
Colour Brown
Connecting Capacity 1/2 x 0.75-2.5 sq-mm Flexible with Ferrule, 1/2 x 0.75-2.5 sq-mm Flexible with Insulated Ferrule, 1/2 x 0.75-2.5 sq-mm Flexible, 1/2 x 0.75-2.5 sq-mm Solid
Connection Type Screw Clamp
Contact Configuration 1NO+1NC
Degree of Pollution IP3
Degree of Protection IP20
Depth 48 mm
Height 39.9 mm
Lamp Type Not included
Model Replacement Lamp Type
Mounting Type Front
Operational Temperature -30 to 70 deg C
Rated Impulse Withstand Voltage 4 kV
Rated Insulation Voltage 690 V
Storage Temperature -40 to 70 deg C
Terminal Type Screw
Tightening Torque 0.9 N-m
Weight 0.05 kg
Width 9.6 mm
Wire Stripping Length 10 mm

Description

The IDEC YW1P-2EQ0A is an amber-colored, dome-type pilot light designed for durability and low heat generation. It operates at 250VAC/DC and is suitable for 22mm panel cutouts. The unit's terminals are IP20 finger safe to enhance user safety during operation.
