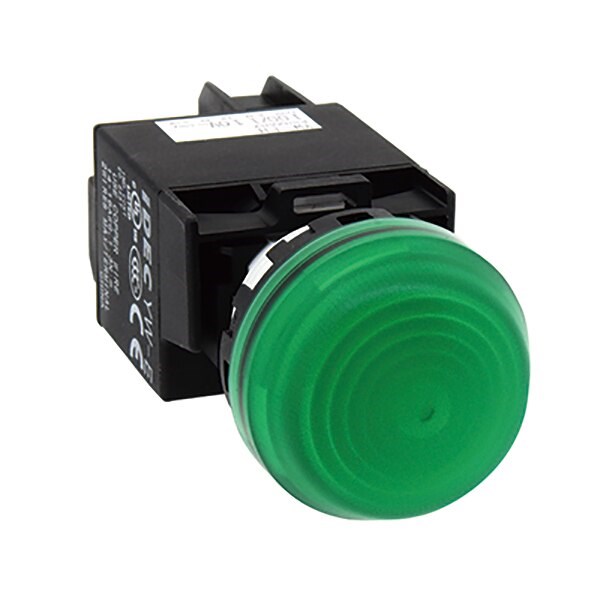

IDEC YW1P-2EM45G Pilot Light Green 22mm Dia Mount Hole

Product Code: YW1P-2EM45G

  • Compact size: 9.6 mm width, 39.5 mm height
  • Wide temp range: -30 to 70°C operational
  • IP20 protection for safe use
  • Faston terminal for easy connection
  • Rated insulation voltage of 690 V
In Stock Low Stock Out Of Stock Please See Attributes

Specifications

Dimensions (mm) 29.6W x 24H x 78.8D
Operating Voltage DC (V) 230/240
Operating Voltage AC (V) 230/240
Product Type Pilot Light
Brand IDEC
Ambient Temperature -30 to 70 deg C
Colour Brown
Connecting Capacity 1/2 x 0.75-2.5 sq-mm Flexible with Ferrule, 1/2 x 0.75-2.5 sq-mm Flexible with Insulated Ferrule, 1/2 x 0.75-2.5 sq-mm Flexible, 1/2 x 0.75-2.5 sq-mm Solid
Contact Configuration 1NO
Degree of Pollution IP3
Degree of Protection IP20
Depth 27.7 mm
Height 39.5 mm
Model Dome Transformer - With Incandescent Lamp
Mounting Type Front
Operational Temperature -30 to 70 deg C
Rated Frequency 50/60 Hz
Rated Impulse Withstand Voltage 4 kV
Rated Insulation Voltage 690 V
Storage Temperature -40 to 70 deg C
Terminal Type Faston
Tightening Torque 0.9 N-m
Width 9.6 mm
Wire Stripping Length 10 mm

Description

The IDEC YW1P-2EM45G is a transformer-type incandescent pilot light designed for efficient operation with 240V AC. Its green illumination and large lens offer a broad viewing angle, while the space-saving 10mm thick contact blocks ensure a compact footprint. The unit's metal bezel enhances durability, and the removable operator feature simplifies maintenance tasks. Installation and removal are made straightforward thanks to the separate contact block design, making this pilot light an ideal choice for streamlined panel setups.
