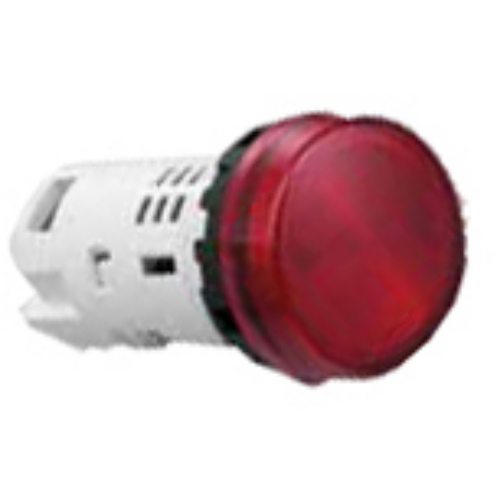

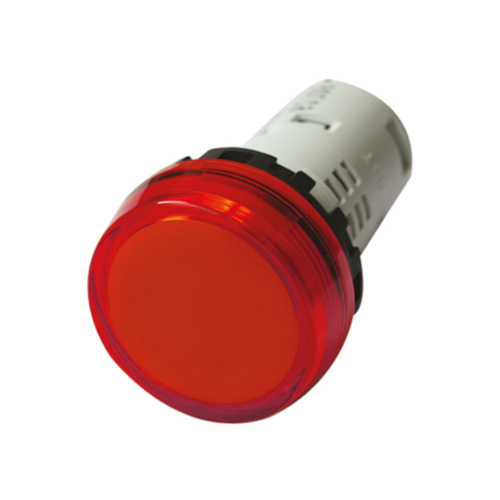

IDEC YW1P-1BUQ3R PILOT LIGHT WITH LED RED 12VAC/DC FLUSH 22MM UNIBODY

Product Code: YW1P-1BUQ3R

The IDEC YW1P-1BUQ3R Unibody Pilot Light is a compact indicator designed for clear signaling with its vibrant red LED. Suitable for flush mounting in a 22mm hole, it ensures a clean installation profile. It operates on a 12VAC/DC power supply, allowing for flexible integration into diverse electrical systems. The device also features an IP20 rating, ensuring finger-safe terminals for enhanced safety during use.

Technical Specifications

Brand IDEC
Degree of Protection IP65 (Front), IP20 (Terminals)
Insulation Resistance (MO) 100
Lamp Type Built-in LED
LED Colour Red
Mounting Hole Diameter (mm) 22
Operational Temperature Range (°C) -20 to +55
Rated Frequency (Hz) 50/60
Rated Voltage AC/DC (V) 12
Series YW
Terminal Type Screw (M3.5)
