Specifications

LED Block Rated Voltage	110 VAC
Bezel Material	Metal

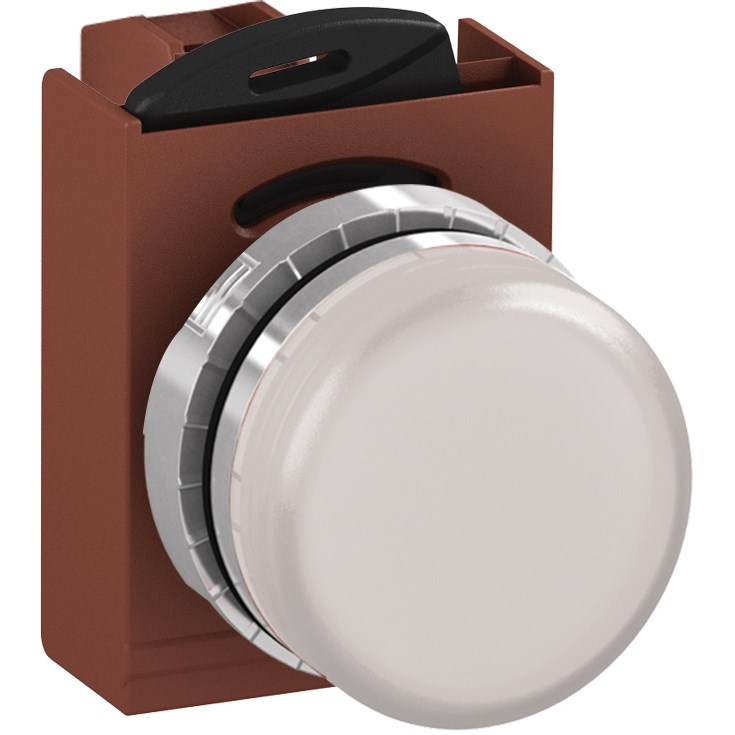

Product Type	Pilot Light Kit
Brand	ABB
Ambient Temperature	-25 to 70 deg C
Colour	White
Connecting Capacity	Flexible with Ferrule 1/2 x 0.75-2.5 sq-mm, Flexible with Insulated Ferrule 1/2 x 0.75-2.5 sq-mm, Flexible 1/2 x 0.75-2.5 sq-mm Solid 1/2 x 0.75-2.5 sq-mm
Connection Type	Screw Clamp
Contact Configuration	2NO
Degree of Pollution	IP3
Degree of Protection	IP20
Depth	28 mm
Height	44 mm
Illumination	Non-Illuminated
Light Blocks Type	LED Block
Mounting Type	Rear
Power Loss	5 W
Rated Current	5 A
Rated Frequency	50/60 Hz
Rated Impulse Withstand Voltage	6 kV
Rated Insulation Voltage	690 V
Rated Voltage	690 VAC
Standards and Approvals	CCC, CE, cULus, REACH, RoHS
Storage Temperature	-40 to 85 deg C
Suitable For Use With	Pilot Devices
Terminal Type	Screw
Tightening Torque	1 N-m
Weight	0.04 kg
Width	20 mm
Wire Stripping Length	8 mm
