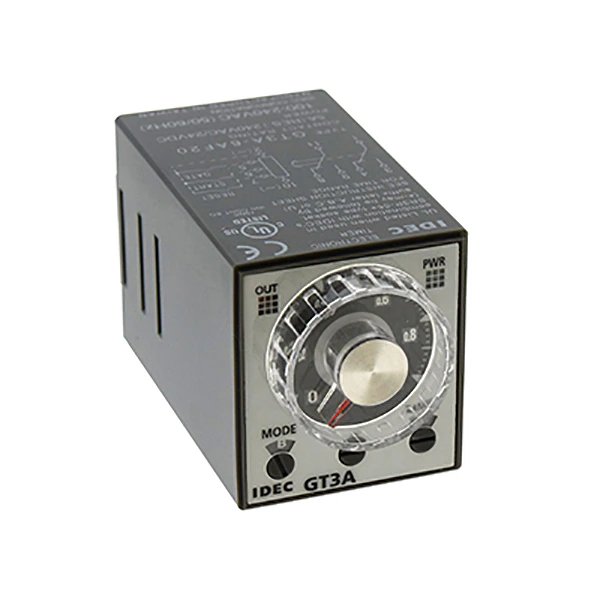

IDEC GT3A-6AD24 Multi-Function Timer 24VDC Pin Terminal

Product Code: GT3A-6AD24

  • Plug-in timer with 24 VDC operation
  • Long electrical life: 100,000 operations
  • Durable mechanical life: 5 million operations
  • Wide operating temp: -30 to 80°C
  • CE, cUL, UL approved for safety
In Stock Low Stock Out Of Stock Please See Attributes

Specifications

Operating Voltage DC (V) 24
Operating Voltage AC (V) 24
Product Type Multi-Function Timer
Brand IDEC
Series GT3A
Degree of Pollution IP2
Electrical Life 100000 Operations
Humidity 45-85%
Insulation Resistance 100 MOhm
Mechanical Life 5000000 Operations
Number of Pins 11
Operational Temperature -30 to 80 deg C
Rated Power 0.9 W, 1.8 VA
Rated Voltage 24 VDC
Standards and Approvals CE, cUL File E55996, UL
Terminal Type Pin

Description

The IDEC GT3A-6AD24 is a versatile plug-in timer with multi-function capabilities, including Interval ON, One Shot Cycle, Signal ON/OFF Delay, and Signal OFF Delay. It operates on 24VAC/DC and offers an adjustable time delay range from 0.1 seconds to 180 hours. This 11-pin timer is designed for precision timing control in various applications.

Documents

  • IPD Product Catalogue

    IPD Product Catalogue V17
