Product Code: GT3A-2AF20

The Plug-in Multifunction Timer offers 4 selectable operation modes on each model. It features external start, reset, and pause inputs on 11 pin models. The timer is designed with a standard 8 pin base and includes power and output status indicating LEDs. It has a time range of 0.05 seconds to 180 hours and operates at a rated input voltage of 100-240VAC. The timer includes both delayed SPDT and instantaneous SPDT functionality. The mode of operation options are A: ON-Delay 1, B: Interval 1, C: Cycle 1, and D: Cycle 3.

Brand	IDEC
Contacts	Delayed SPDT + Instantaneous SPDT
Degree of Protection	IP40 (Timer), IP20 (Socket)
Input Voltage AC (V)	100 - 240
Input Voltage AC/DC (V)	24
Input Voltage DC (V)	12
Insulation Resistance (MO)	100
No. of Pins	8
Operational Temperature Range (°C)	-10 to +50
Output Voltage AC (V)	240 (3A) / 120 (5A)
Output Voltage DC (V)	30
Pollution Degree	2
Power Consumption (W)	4.3VA (200V AC, 60Hz)
Series	GT3A
Standards and Approvals	EN 61812-1:2011, EN IEC 63000:2018
Storage Temperature (°C)	-30 - +70
Timing Range	0.1s - 180hrs

Electrical Time Switches, Timers & Control Relays

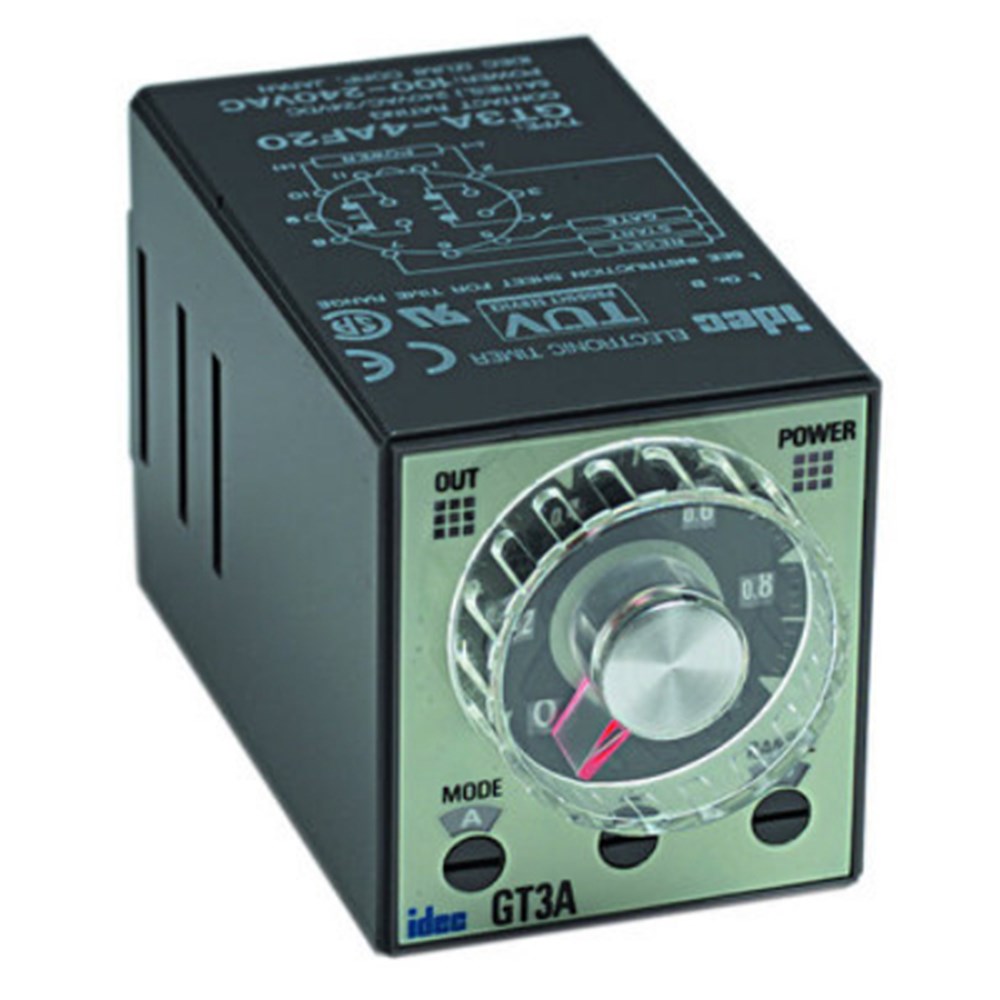

IDEC PLUG-IN TIMER 8 PIN 100-240VAC SPDT GT3A-2AF20
