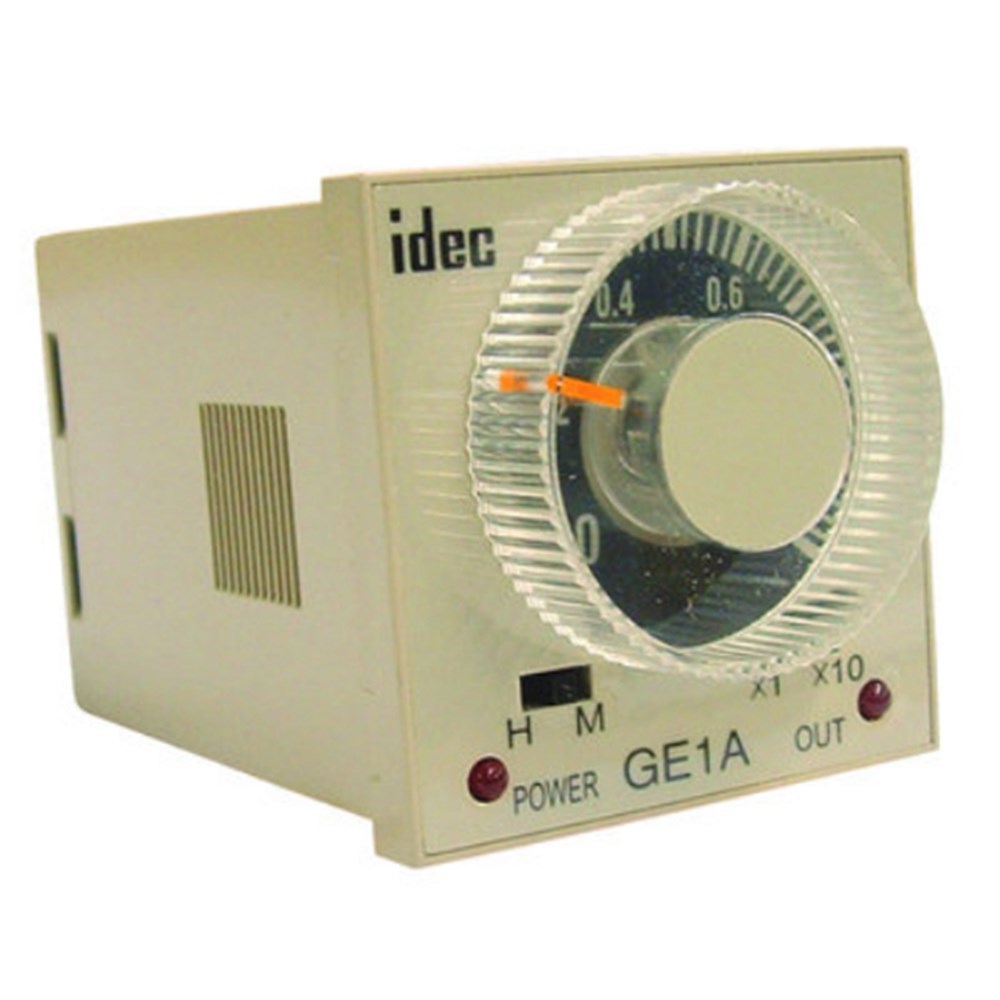

IDEC GE1A-C10HA110 ON Delay Timer Delayed DPDT 110-120VAC Pin Terminal

Product Code: GE1A-C10HA110

  • Plug-in timer with 110-120 VAC rating
  • Delayed DPDT contact configuration
  • Operating time range: 0.1s to 10hr
  • Insulation resistance of 100 MOhm
  • CE, cUL, and UL approved
In Stock Low Stock Out Of Stock Please See Attributes

Specifications

Contacts Delayed DPDT
Input Voltage AC (V) 110 - 120
Insulation Resistance (MO) 100
No. of Pins 8
Operating Voltage AC (V) 110
Operational Temperature Range (°C) -10 to +55
Output Voltage DC (V) 24
Power Consumption (W) 0.8
Output Voltage AC (V) 240 (3A) / 120 (5A)
Maximum Reset Time (s) 0.1
Timing Range 0.1s - 10hrs
Product Type ON Delay Timer
Brand IDEC
Series GE1A
Contact Configuration Delayed DPDT
Insulation Resistance 100 MOhm
Number of Pins 8
Operating Time 0.1 s-10 hr
Operational Temperature -10 to 55 deg C
Rated Power 0.8 W
Rated Voltage 110-120 VAC
Standards and Approvals CE, cUL File E55996, UL
Terminal Type Pin

Description

This plug-in multifunction and on-delay timer features a delayed DPDT configuration with an 8-pin octal base. It is equipped with LED indicators for easy monitoring. The time range of this timer is from 0.1 minutes to 10 hours, and it operates at a voltage of 110VAC. Additionally, it has a maximum reset time of 0.1 seconds.

Documents

  • IPD Product Catalogue

    IPD Product Catalogue V17
