Product Code: GT3A-3AD24

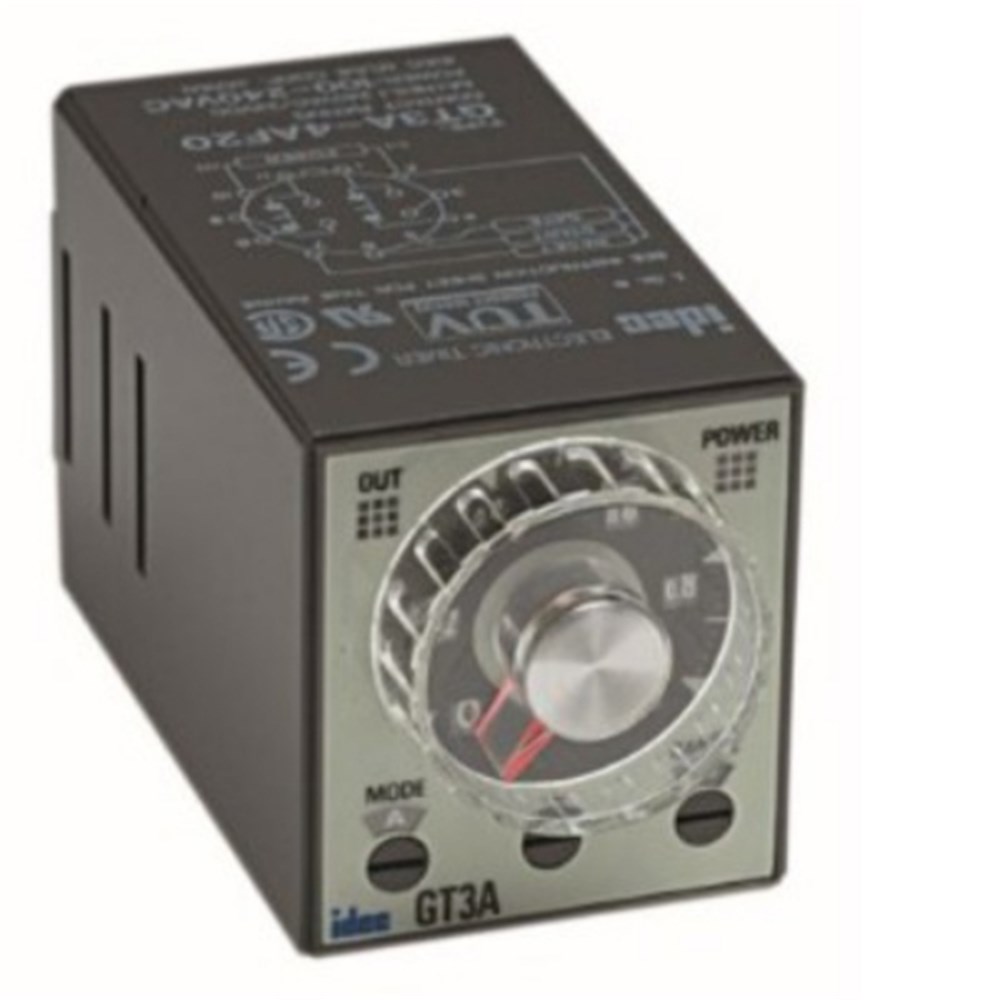

The Plug-in Multifunction Timer offers 4 selectable operation modes on each model. It features external start, reset, and pause inputs on 11 pin models. The timer is designed with a standard 8 pin base and includes power and output status indicating LEDs. It has a time range of 0.05s to 180H and operates with a rated input voltage of 24VAC/24VDC. The timer utilizes Delayed DPDT mode of operation, with Mode A being ON-Delay 1, Mode B being Interval 1, Mode C being Cycle 1, and Mode D being Cycle 3.

Brand	IDEC
Contacts	Delayed DPDT
Degree of Protection	IP40 (Timer), IP20 (Socket)
Input Voltage AC (V)	24
Input Voltage AC/DC (V)	24
Input Voltage DC (V)	12
Insulation Resistance (MO)	100
Maximum Reset Time (s)	60ms
No. of Pins	8
Operational Temperature Range (°C)	-10 to +50
Output Voltage AC (V)	240
Output Voltage DC (V)	24
Pollution Degree	2
Power Consumption (W)	0.7W (DC), 1.8VA (AC)
Series	GT3A
Standards and Approvals	EN 61812-1:2011, EN IEC 63000:2018
Storage Temperature (°C)	-30 - +70
Timing Range	0.1s - 180hrs

Electrical Time Switches, Timers & Control Relays

IDEC PLUG-IN TIMER 8 PIN 24VAC/DC DPDT GT3A-3AD24

Product Code: GT3A-3AD24
