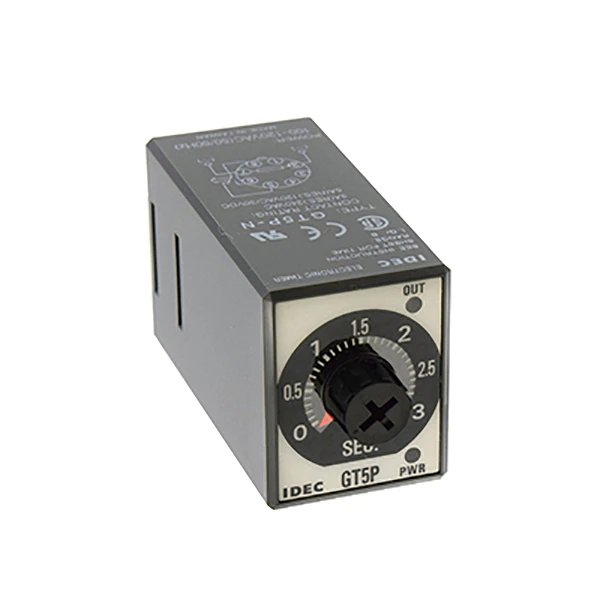

IDEC GT5P-N10SA100 ON Delay Timers 100-120VAC Pin Terminal

Product Code: GT5P-N10SA100

  • Compact size: 29x36x81.5 mm
  • Long mechanical life: 20 million ops
  • Electrical durability: 100k ops
  • Wide temp range: -10 to 50°C
  • CE, CSA, UL recognized
In Stock Low Stock Out Of Stock Please See Attributes

Specifications

Dimensions (mm) 29W x 36H x 81.5D
Operational Temperature Range (°C) -10 to 50
Weight (g) 54
Minimum Mechanical Life 20,000,000
Operating Humidity 35 to 85%
Minimum Electrical Life 100000
Resistance to Shock (m/s²) 98
Power Consumption (VA) 2.9
Voltage Range AC (V) 100 to 120
Product Type ON Delay Timers
Brand IDEC
Depth 81.5 mm
Electrical Life 100000 Operations
Height 36 mm
Humidity 45-85%
Mechanical Life 20000000 Operations
Operational Temperature -10 to 50 deg C
Rated Power 2.9 VA
Rated Voltage 100-120 VAC
Shock Resistance 98 ms
Standards and Approvals CE, CSA, UL Recognized File E55996
Terminal Type Pin
Weight 54 g
Width 29 mm

Description

The IDEC GT5P-N10SA100 is a plug-in timer designed for precision timing control in automation systems. It operates on a 100-120VAC input voltage and offers an adjustable on-delay timing range from 0.2 seconds to 10 seconds. The device features SPDT contacts and an 8-pin configuration for easy integration into existing setups. This timer is ideal for applications requiring reliable time delay functions.
