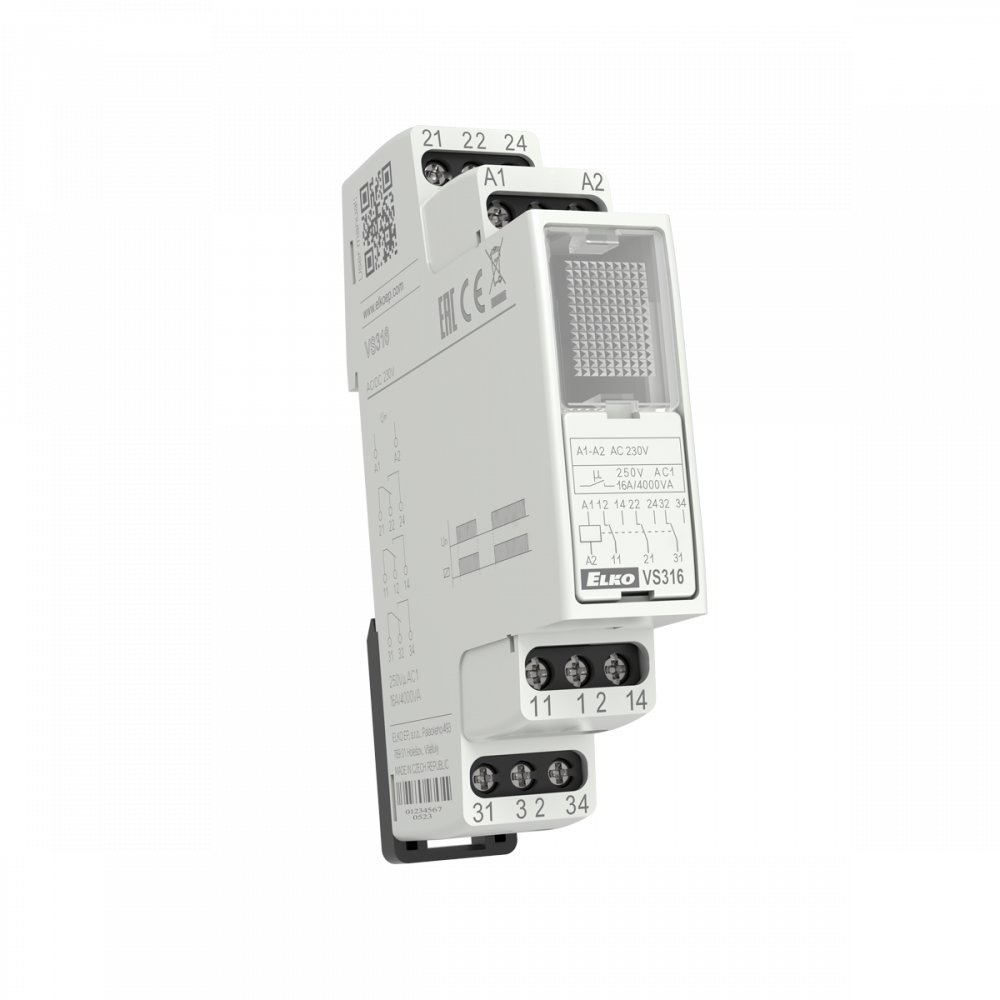

ELKO POWER RELAY MODULE 1C/O 16A 230V AC VS316/230

Product Code: VS316/230

The Power Relay with LED Indication is designed for switching three-phase loads. It can switch between different phases or 3-phase voltages using its 3 changeover contacts. The relay has a rating of 16A and operates at a supply voltage of 230VAC. It features a red LED indication for easy monitoring. This relay is available in options with a width of 17.5mm, making it suitable for compact installations.

Technical Specifications

Brand ELKO
Contact Material Silver alloy
Contacts 3CO (TPDT)
Degree of Protection IP40 (Front Panel), IP20 (Terminals)
Dimensions (mm) 90 x 17.6 x 64
Function Switching single/triple phase load
LED Colour Output: Red
Mounting Type DIN Rail
No. of Modules 1
No. of Phases 3
Operational Temperature Range (°C) -20 to +55
Overvoltage Category 3
Pollution Degree 2
Rated Current (A) 16
Rated Frequency (Hz) 50/60
Standards and Approvals EN 60669-1, EN60669-2-1, EN60715
Storage Temperature (°C) -30 to +70
Time Ranges 50ms
Universal Supply Voltage AC (V) 230
