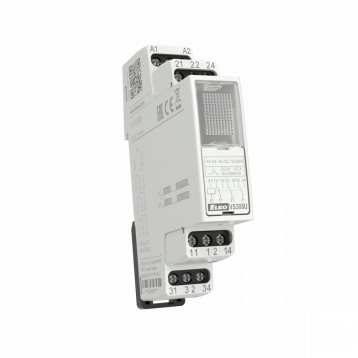

ELKO POWER RELAY MODULE 3 C/O 8A, AC/DC 12-240V, 50-60Hz (UNI) RED LED VS308U - Relays

Product Code: VS308U

Voltage Range AC/DC (V)	Supply Terminals A1 - A2: 12 - 240V AC/DC
Brand	ELKO
Ambient Temperature Range (°C)	-20 to 55
Contact Configuration	3 Changeover/TPDT
Contact Material	AgNi/Silver Alloy
Degree of Protection	Front Panel: IP40, Terminals: IP20
Dielectrical Strength (kV)	4 (Supply-output)
Dimensions (mm)	17.6W x 90H x 64D
Indication	High Intensity LED
Inrush Current (A)	10A / <3s
Maximum Power Dissipation (W)	3
Minimum Electrical Life	60,000 Operations
Minimum Mechanical Life	30,000,000 Operations
Minimum Switching Time (s)	2
Mounting Type	DIN Rail
Overvoltage Category	III
Pollution Degree	2
Rated Current (A)	8
Rated Frequency (Hz)	50/60
Standards and Approvals	EN 60669-1, EN 60669-2-1
Storage Temperature Range (°C)	-30 to 70
Switching Voltage (V)	250V AC / 24V DC
Weight (g)	80
