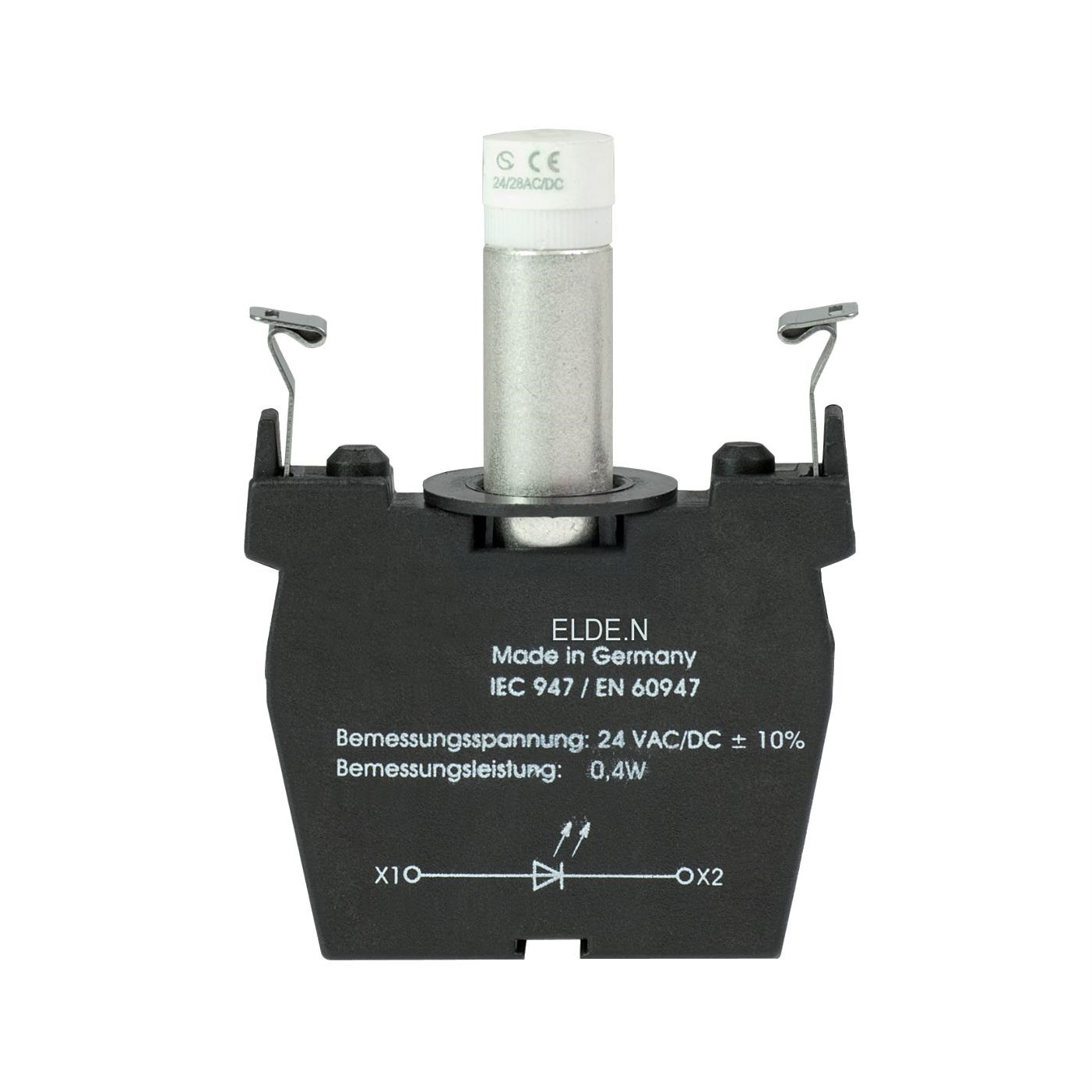

Schmersal 101166000 Light Terminal Block 24VAC/DC 250V

Product Code: 101166000

  • Suitable for 24 VAC/VDC systems
  • IP20 protection rating
  • Screw connection type
  • Thermoplastic housing material
  • White LED indicator
In Stock Low Stock Out Of Stock Please See Attributes

Specifications

Product Type Light Terminal Block
Brand SCHMERSAL
Series Light terminal block ELDE
Cable Cross Section 0.5-2.5 sq-mm, 0.5-1.5 sq-mm
Connection Type Screw
Degree of Protection IP20
Housing Material Thermoplastic
LED Colour White
Rated Insulation Voltage 440 V
Rated Operational Voltage 250 V
Rated Voltage 24 VAC/VDC
Standards and Approvals CCC, cULus, EAC, EN 60947-1, EN 60947-5-1, IEC

Description

<p>This accessory is designed to seamlessly integrate into your industrial or commercial setup, providing reliable performance and adherence to stringent standards. Operating at a rated voltage of 24 VAC/VDC, it offers versatility for various applications requiring low-voltage solutions. The degree of protection is IP20, ensuring adequate resistance against solid objects larger than 12.5 mm, making it suitable for indoor environments where dust and moisture exposure is minimal.</p><p>The product complies with multiple international standards and approvals including CCC, cULus, EAC, EN 60947-1, EN 60947-5-1, and IEC. These certifications affirm its reliability and safety across different regulatory landscapes.</p><p>Featuring a screw connection type, this accessory supports cable cross sections ranging from 0.5 to 2.5 sq-mm and 0.5 to 1.5 sq-mm respectively. This flexibility allows for straightforward integration into existing systems without the need for specialized tools or connectors.</p><p>With a rated insulation voltage of up to 440 V, the product ensures safe operation in electrical systems by preventing unintended current flow between conductors or from conductor to ground under specified conditions.</p><p>Constructed with durable thermoplastic housing material, this accessory promises longevity even in demanding industrial settings while maintaining lightweight characteristics that facilitate easy installation.</p><p>The rated operational voltage stands at 250 V which aligns well with standard requirements for many electrical components used in commercial applications today.</p><p>A notable feature is its white LED indicator which provides clear visibility during operation—ideal for situations where monitoring status at a glance is critical.</p><p>In summary, this accessory embodies practicality and compliance with essential technical specifications tailored for professionals seeking dependable components that align with their project needs efficiently without unnecessary complexity or embellishments.</p>
