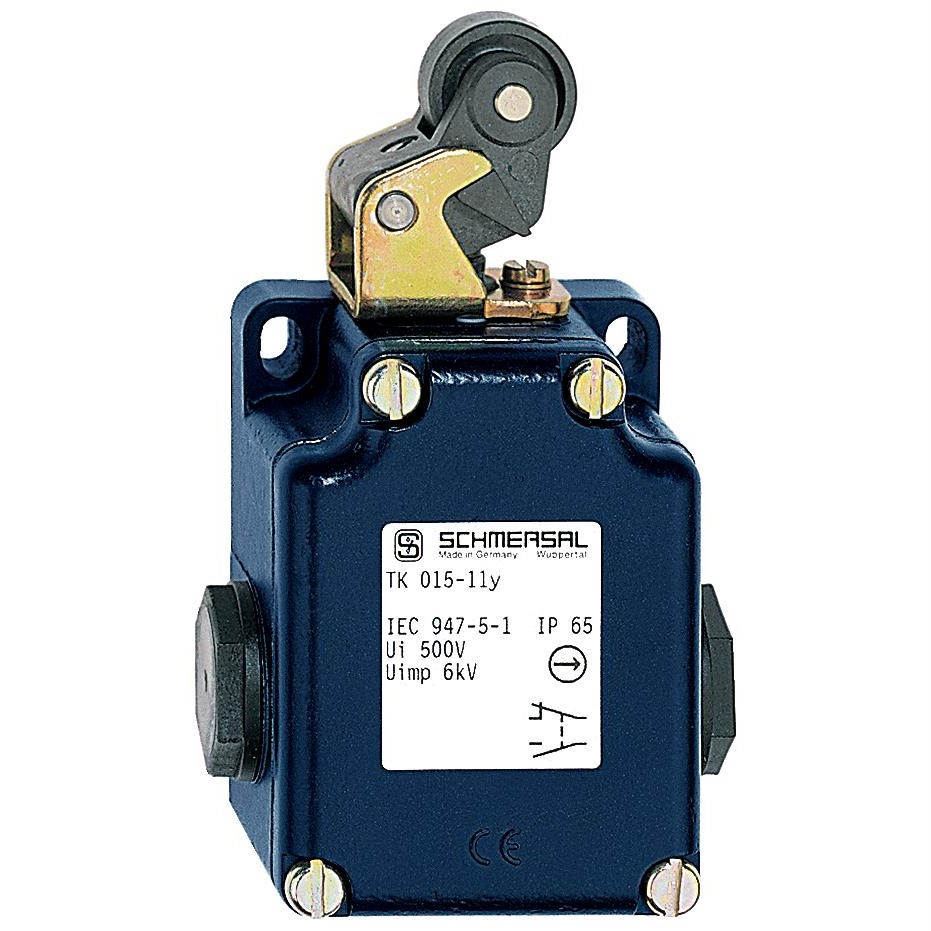

Schmersal 131152189 Position Switch Offset Roller Lever 1NO-1NC Die Cast Light Alloy Painted Silver Contact

Product Code: 131152189

  • Rated for 400 VAC and 4 A
  • Durable die-cast alloy housing
  • IP65 protection against dust/water
  • Meets ENISO 13849-1 standards
  • Offset roller lever actuator
In Stock Low Stock Out Of Stock Please See Attributes

Specifications

Product Type Position Switch
Brand SCHMERSAL
Actuating Speed 1 mm/min
Actuator Type Offset Roller Lever
Cable Cross Section 2.5 sq-mm
Contact Configuration 1NO+1NC
Contact Material Silver
Contact Opening (2) 2.5 mm
Degree of Protection IP65
Housing Material Die Cast Light Alloy, Painted
Rated Current 4 A
Rated Voltage 400 VAC
Standards and Approvals ENISO 13849-1
Switching Type Slow Action
Weight 260 g

Description

<p>For professionals in the industrial and commercial sectors, selecting a reliable limit switch is crucial for ensuring safety and operational efficiency. This particular limit switch offers a robust solution with its impressive specifications tailored to meet demanding technical requirements.</p><p>Constructed from die-cast light alloy, the housing is not only durable but also painted to provide additional protection against environmental factors. With an IP65 rating, this switch is adept at handling dust ingress and low-pressure water jets from any direction, making it suitable for various challenging environments.</p><p>Operating at a rated voltage of 400 VAC and supporting a current of up to 4 A, this limit switch provides dependable performance in numerous applications. The contact configuration of 1NO+1NC allows for versatile usage scenarios, accommodating both normally open and normally closed operations within your system design.</p><p>The switching type is slow action, which ensures that contacts change state gradually as opposed to instantaneously. This can be particularly beneficial in applications where precise control over the switching process is required. The actuator type featured here is an offset roller lever, providing smooth actuation with minimal effort needed due to its actuating speed of just 1 mm/min.</p><p>Silver contact material enhances electrical conductivity while resisting oxidation for prolonged life expectancy and consistent performance over time. The cable cross-section capability stands at 2.5 sq-mm, allowing adequate current flow without overheating concerns.</p><p>Furthermore, the standards and approvals compliant with ENISO 13849-1 affirm that this product meets stringent safety requirements essential for machine safety components used in automation systems.</p><p>Weighing just 260 g makes it lightweight yet sturdy enough for easy installation without compromising on strength or reliability. Additionally, the contact opening measures (2) 2.5 mm ensuring secure connectivity within your circuit setup.</p><p>In summary, this limit switch combines durability with functionality through its thoughtful engineering design elements aimed at delivering reliable service across diverse industrial contexts while adhering strictly to international standards—making it an excellent choice for those seeking quality assurance backed by technical precision.</p>
