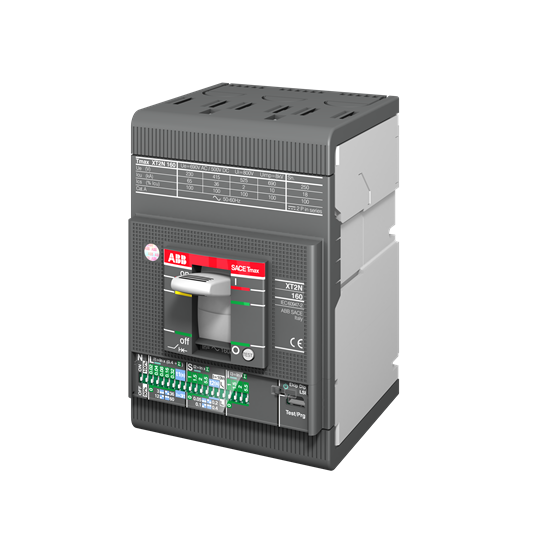

<p>When selecting the right Molded Case Circuit Breaker (MCCB) for your application, it&#39;s crucial to consider all technical specifications that ensure optimal performance and compatibility with your systems. This MCCB model is designed to meet the rigorous demands of industrial and commercial settings, providing reliable protection and control.</p><p>With a rated current of 100 A, this MCCB is well-suited for medium-duty applications where consistent performance is essential. The unit operates effectively within a rated voltage of 690 VAC, making it compatible with various electrical setups. Its ability to withstand high impulse voltages up to 8 kV ensures robustness against transient overvoltages, enhancing system reliability.</p><p>This MCCB features an Ekip Dip LSI trip unit equipped with an EL release type, offering precise protection against overloads and short circuits. The power loss associated with this model is minimal at just 4.2 W, promoting energy efficiency in your installations.</p><p>The breaker boasts a three-pole configuration, which provides comprehensive coverage for three-phase systems common in industrial environments. Installation flexibility is supported by its front connection type and bolt terminal design, facilitating straightforward integration into existing setups.</p><p>In terms of physical dimensions, the MCCB measures 90 mm in width, 130 mm in height, and has a depth of 82.5 mm—compact enough for easy installation without sacrificing functionality. It maintains an IP20 degree of protection level ensuring basic protection against solid objects while being lightweight at only 1.12 kg.</p><p>Compliance with IEC60947-2 standards underscores its adherence to international safety and performance criteria—a critical consideration for any professional seeking dependable equipment.</p><p>Operating efficiently across standard power frequencies of both 50 Hz and 60 Hz broadens its applicability across different regions or systems requiring specific frequency operations.</p><p>Designed to be used alongside XT2H devices enhances its versatility within modular setups or complex installations requiring coordinated components.</p><p>Additionally, the main circuit connecting capacity ranges from 32.5 sq-mm up to a robust maximum of 100 sq-mm accommodating varying conductor sizes typically encountered in diverse electrical infrastructures.</p><p>Overall this MCCB offers a balanced combination of durability efficiency compliance flexibility making it an excellent choice whether upgrading existing panels or specifying new projects demanding high-quality circuit breakers tailored specifically towards Australian technical requirements.</p>
