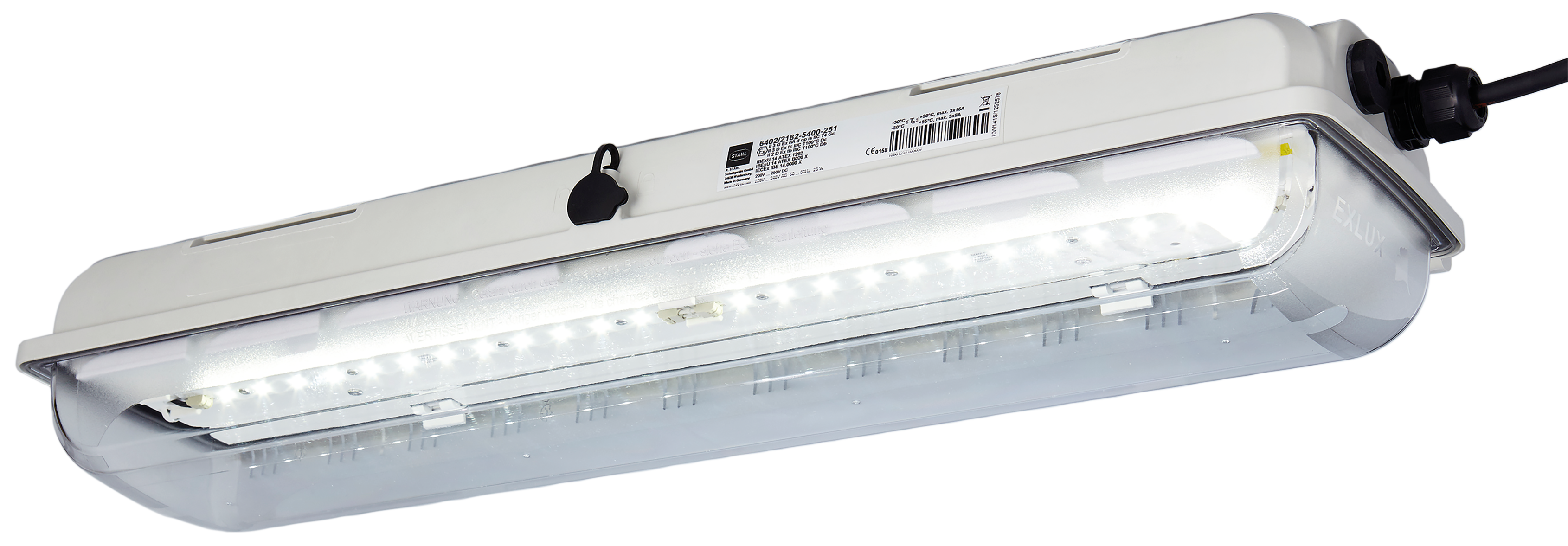

STAHL 6402/4148-6100-152-2220-22-8500 LINEAR LUMINAIRE WITH LED GRP 267055

Product Code: 267055

Discover the Stahl Series 6402/4 LED linear luminaire, engineered for hazardous areas and designed to deliver high-efficiency lighting. This robust fixture operates on a versatile voltage range from 100 to 240 VAC or 110 to 250 VDC, with a power consumption of just 42 watts. It boasts an impressive luminous efficacy of 138 lumens per watt, providing a strong output of 5810 lumens in neutral white light. The dimensions are optimized at 120x120 with diffusing glass to ensure even light distribution. Crafted for extreme conditions, it withstands temperatures from -40°C up to +55°C (T100°C), ensuring reliability in challenging environments. The luminaire features through wiring capable of handling a maximum of 3x16 A and is sealed with IP66/IP67 ratings for superior protection against dust and water ingress. Trust in the quality and durability that Stahl offers for your industrial lighting needs.

Technical Specifications

Lamp Wattage (W) 42
Maximum Temperature (°C) 55
Minimum Temperature (°C) -40
No. of Conductors 5
Nominal Power (W) 42
Rated Maximum Operational Voltage AC (V) 240
Rated Maximum Operational Voltage DC (V) 250
Rated Minimum Operational Voltage AC (V) 110
Rated Minimum Operational Voltage DC (V) 110
Terminal Size (mm²) 6
Brand STAHL
Ambient Temperature Range (°C) -40 to +55
Conductor Cross Section (mm²) 2.5
Degree of Protection IP66/67
Maximum Operational Voltage AC (V) 240
Maximum Operational Voltage DC (V) 250
Minimum Operational Voltage AC (V) 110
Minimum Operational Voltage DC (V) 110
Mounting Type Surface
No. of Holes 3 x M20
Series 6402/4
Standards and Approvals ATEX/IECeX
