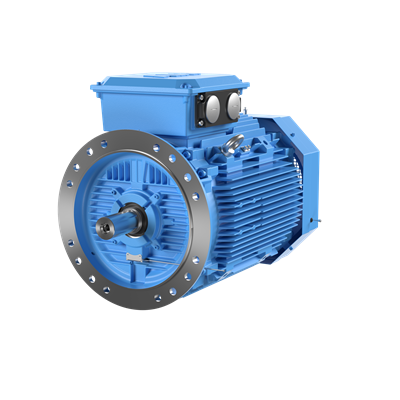

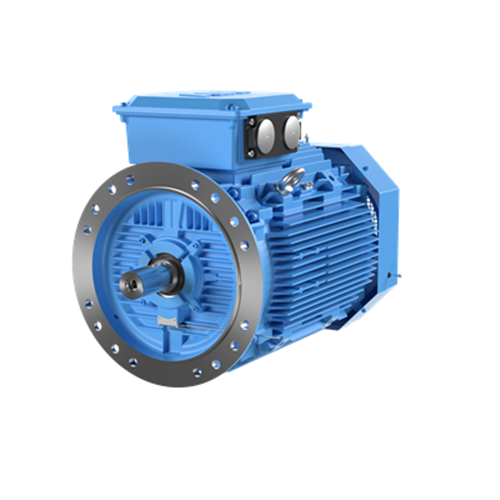

ABB IE5 SYNRM CAST IRON MOTOR 4P 1000RPM 37kW 400 VY M3BL250SMA BIG FLANGE MOUNT B5 IP55 3GBL252212-BSC

Product Code: 3GBL252212-BSC

  • Rated voltage of 500 V for robust performance
  • IP55 protection for dust and water resistance
  • Flange mounting for secure installation
  • 37 kW power suited for heavy-duty tasks
  • Durable cast iron frame construction
In Stock Low Stock Out Of Stock Please See Attributes

Specifications

Product Type Synchronous reluctance motors
Brand ABB
Colour Blue
Connection Type Input Voltage - 415 V
Degree of Protection IP55
Dimensions 884 mm x 626 mm x 508 mm
Efficiency IE5
Frame Size 250
Rated Power 37 kW
Weight 428 kg
Mounting Method Flange mounted, large flange, IM B5, IM 3001
Motor Poles Rated RPM = 1000 at 33.33Hz
Motor Speed 1000 RPM

Description

<p>When selecting equipment for industrial and commercial applications, understanding the technical specifications is crucial. This product offers a robust solution with its impressive features tailored for demanding environments.</p><p>Operating at a rated voltage of 500 V and a frequency of 50 Hz, this unit ensures compatibility with standard Australian electrical systems. It boasts a substantial rated power of 37 kW, making it suitable for high-demand operations where efficiency and reliability are paramount.</p><p>The speed rating stands at 1000 RPM, providing optimal performance in various applications requiring consistent operational speeds. Its construction from cast iron enhances durability and longevity, offering excellent resistance to wear and tear in harsh environments.</p><p>One of the standout features is its IP55 degree of protection. This rating indicates that the product is well-protected against dust ingress sufficient to prevent interference with normal operation and against water jets from any direction—ideal for settings where exposure to such elements is common.</p><p>The mounting type is flange, which provides ease of installation while ensuring stability during operation. This feature allows it to be integrated seamlessly into existing setups or new installations without significant modifications.</p><p>Designed according to IEC standards, particularly with an IEC frame size of 250, it aligns with international norms ensuring compatibility across different systems and regions. This aspect not only simplifies integration but also assures users of its quality and reliability as per globally recognized standards.</p><p>In summary, this product combines efficient performance metrics with durable construction materials ensuring it meets the rigorous demands expected in industrial settings. Whether you&amp;#39;re upgrading existing equipment or setting up new operations, these specifications provide assurance that this unit will meet your technical requirements effectively without compromising on quality or safety.</p>
