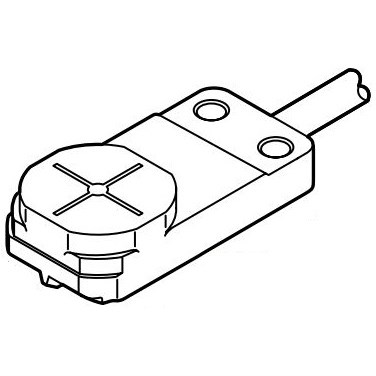

Panasonic GX-F6A Rectangular Inductive Proximity Sensor NO NPN-Output 1m L Cable

Product Code: GX-F6A

  • Sensing range: 0-1.3 mm
  • Voltage range: 12-24 VDC
  • Durable PBT housing, IP68 protection
  • Operates in -40 to 85°C conditions
  • Orange LED operation indicator
In Stock Low Stock Out Of Stock Please See Attributes

Specifications

Product Type Rectangular Inductive Proximity Sensor
Brand PANASONIC
Cable Length 1 m
Cable Type 3-core oil, heat and cold resistant cabtyre cable
Degree of Protection IP68, IP68G
Housing Material PBT
Humidity 35-95%
Insulation Resistance 50 MOhm
Operation Indicator Orange LED ON
Operational Temperature -40 to 85 deg C
Rated Current <15 mA
Rated Voltage 12-24 VDC
Relative Humidity 35 to 95%
Sensing Range 0-1.3 mm
Sensor Type Front Sensing
Shock Resistance 10000 ms
Utilisation Category DC-12 or DC-13
Weight 15 g

Description

<p>When it comes to ensuring precise and reliable detection in industrial environments, this Proximity Sensor stands out as a robust choice. Designed for those who require dependable performance across various applications, this sensor offers a sensing range of 0-1.3 mm, making it ideal for close-range detection tasks.</p><p>Operating within a rated voltage of 12-24 VDC and drawing less than 15 mA of current, the sensor is energy-efficient while maintaining high reliability. The housing material is constructed from durable PBT, known for its excellent resistance to moisture and chemicals—perfect for challenging industrial settings.</p><p>The sensor&amp;#39;s degree of protection is rated at IP68 and IP68G, ensuring complete protection against dust ingress and long-term immersion in water up to specified depths. This makes it suitable for use in harsh environmental conditions where exposure to elements is inevitable.</p><p>With an operational temperature range spanning from -40 to 85 degrees Celsius, this proximity sensor can handle extreme temperatures without compromising performance. It also boasts impressive humidity tolerance between 35% and 95%, further enhancing its adaptability across different climates or indoor environments.</p><p>Weighing just 15 grams, the sensor is lightweight yet sturdy enough to withstand shock forces up to 10000 ms. This resilience ensures that even in dynamic or vibration-prone settings, the device maintains optimal functionality.</p><p>The cable length provided is 1 meter, offering adequate reach for most installation scenarios without unnecessary excess that could complicate setups. Furthermore, with an insulation resistance of 50 MOhm, the device guarantees safe operation by minimizing leakage currents.</p><p>An orange LED operation indicator provides clear visual confirmation when the sensor is active—a simple yet effective feature that aids troubleshooting during maintenance checks or initial installations.</p><p>This combination of features makes this Proximity Sensor a versatile component fit for diverse applications ranging from automation systems to complex machinery operations. Its rugged design coupled with efficient power usage ensures longevity and consistent output regardless of external factors—an essential attribute for any professional seeking reliability in their technical solutions.</p>
