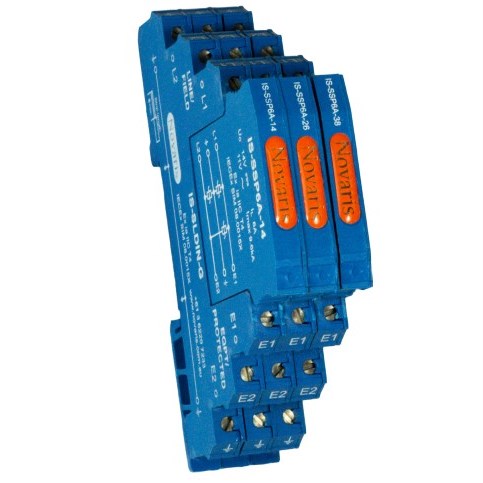

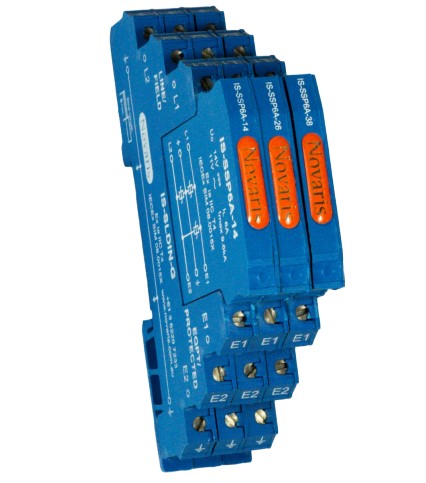

<p>If you&#39;re in the market for a reliable signal line protector, this product offers a range of features designed to meet industrial and commercial requirements. With its robust specifications, it ensures your systems remain protected under various conditions.</p><p>The signal line protector operates at a rated voltage of 26 VDC and offers a rated power capacity of 2.2 W. It can handle significant surges with a rated current capacity of 4.8 kA per line and an impressive 9.6 kA in common mode, making it suitable for environments where electrical disturbances are prevalent.</p><p>Designed with durability in mind, this device boasts an IP20 degree of protection, safeguarding against solid objects larger than 12 mm while ensuring ease of access for maintenance purposes. The unit is conveniently mounted on a TS35 DIN rail, providing flexibility in installation within control panels or distribution boards.</p><p>Compact dimensions (102 mm width, 68 mm height, and only 7 mm depth) allow it to fit seamlessly into existing setups without requiring extensive space adjustments. Despite its compact size, the unit maintains structural integrity with polycarbonate material construction weighing just 35 g.</p><p>The operational temperature range spans from -20 to 40 degrees Celsius, accommodating various environmental conditions typical in industrial settings. Additionally, it supports humidity levels between 5% and 95%, ensuring performance stability even in challenging climates.</p><p>For compliance and safety assurance, the product adheres to several standards: IEC 60079-0 and IEC 60079-11 for explosive atmospheres; IEC 61643-21:2012 for surge protective devices; AS/NZS 1768:2007; UL standards (1449 - third edition &amp; UL497B); as well as ITU-T K.44:2012 recommendations—demonstrating its global applicability across different regulatory frameworks.</p><p>Performance-wise, the signal line protector exhibits rapid response times (&lt;5 ns), crucial for mitigating transient voltages effectively before they impact sensitive equipment downstream. Its low resistance value (0.02 Ohm) ensures minimal energy loss during operation while maintaining optimal performance levels throughout usage cycles.</p><p>Additional technical characteristics include capacitance at approximately28 nF alongside voltage protection level pegged at55 V—offering enhanced protection capabilities against over-voltage scenarios commonly encountered across diverse applications ranging from telecommunications through industrial automation systems alike!</p><p>Finally—a base type G direct earthing configuration provides efficient grounding pathways further enhancing overall system reliability by minimizing potential risks associated with electrical faults occurring within connected circuits themselves!</p>
