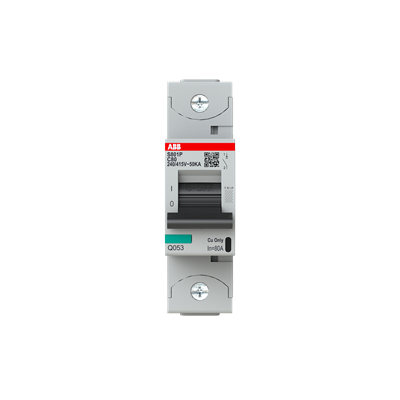

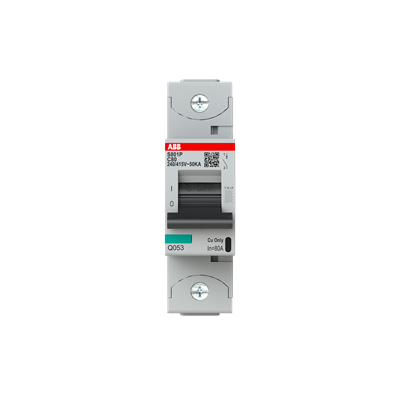

<p>When selecting a Miniature Circuit Breaker (MCB) for industrial or commercial applications, it’s crucial to focus on specifications that ensure reliability and safety. The S800P Series MCB stands out with its robust features designed to meet demanding electrical requirements.</p><p>Starting with the rated current, this MCB handles up to 80 A, making it suitable for various heavy-duty applications. It operates efficiently within a voltage range of 230/400 VAC and boasts a rated insulation voltage of 690 V, ensuring optimal performance in diverse environments.</p><p>Safety is paramount in electrical systems, and this MCB doesn’t compromise. With a breaking capacity of 50 kA and short circuit capacity at 15 kA, it provides strong protection against overloads and short circuits. Additionally, the rated impulse withstand voltage is an impressive 6 kV, safeguarding your system against transient overvoltages like lightning strikes.</p><p>The device&#39;s IP20 degree of protection indicates it&#39;s adequately protected against solid objects larger than 12 mm but not against water ingress. However, its degree of pollution rating at IP3 suggests suitability for environments where conductive pollution might occur.</p><p>For ease of installation, the S800P Series MCB mounts conveniently on DIN rails. It supports both flexible (1-50 sq-mm) and rigid (1-70 sq-mm) connecting capacities. The recommended wire stripping length is 19 mm, facilitating straightforward connections without unnecessary hassle.</p><p>This breaker holds certifications from IEC/EN 60947-2 and UL 1077 standards—providing assurance in compliance with international safety regulations. Its construction includes a curve type C characteristic which means it&#39;s ideal for general-purpose use where moderate startup currents are expected.</p><p>Physically compact yet sturdy—with dimensions measuring just 27 mm in width by 95 mm in height by 82.5 mm in depth—it fits neatly into standard panels without occupying excessive space. Weighing only about 0.245 kg further aids easy handling during installation or maintenance processes.</p><p>Operating across frequencies between 50/60 Hz makes this unit adaptable globally while maintaining stability under varied conditions ranging from -25&#176;C to +60&#176;C ambient temperatures—ensuring consistent operation throughout seasonal changes or different geographical locations.</p><p>Efficiency isn&#39;t overlooked either; power loss remains minimal at only approximately six watts—keeping energy consumption low while still delivering high performance levels necessary within active circuits requiring reliable interruption capabilities when needed most critically!</p><p>Whether upgrading existing infrastructure or planning new installations altogether—you can trust these mid-lifecycle components will integrate seamlessly offering long-term benefits backed by technical precision engineered specifically towards meeting today&#39;s evolving demands head-on confidently!</p>
