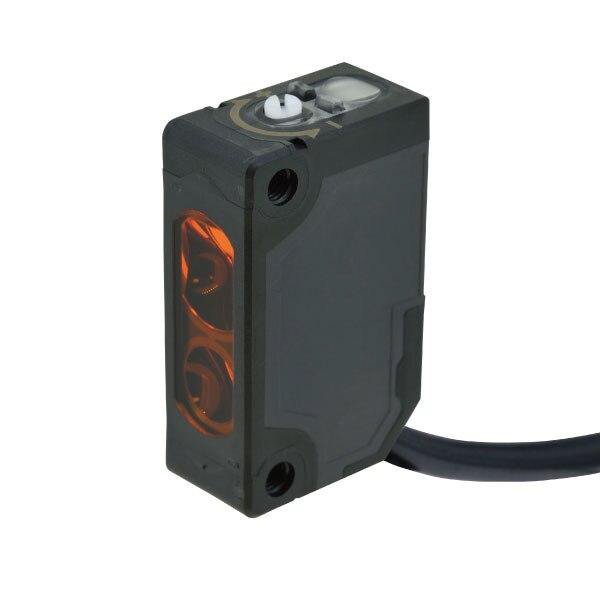

IDEC SA2E-DN3M-2M Didduse-Reflective Miniature Photoelectric Sensor 12-24VDC 500mm Sensing 2m L Cable NPN-Output

Product Code: SA2E-DN3M-2M

  • Sensing range up to 500 mm
  • Operates on 12-24 VDC, 20 mA
  • NPN output with cable connection
  • Durable PBT case, PMMA lens
  • IP67 rated for tough environments
In Stock Low Stock Out Of Stock Please See Attributes

Specifications

Product Type Didduse-Reflective Miniature Photoelectric Sensor
Brand IDEC
Cable Length 2 m
Connection Type Cable
Degree of Protection IP67
Emitting Element Red LED
Housing Material PBT Case, Polymethyl Methacrylate Lens
Humidity 35-85%
Material Case: Polybutylene terephthalate (PBT), Lens: Polymethyl methacrylate (PMMA)
Operation Indicator Light-ON, Dark-ON
Operational Temperature -30 to 55 deg C
Output Type NPN
Rated Current 20 mA
Rated Voltage 12-24 VDC
Response Time 0.5 ms
Sensing Range 500 mm
Shock Resistance 1000 ms
Standards and Approvals IEC 60529

Description

<p>When it comes to reliable and efficient sensing solutions, this Photoelectric Sensor stands out with its robust design and versatile features, making it a suitable choice for various industrial and commercial applications. With a sensing range of up to 500 mm, this sensor provides precise detection capabilities essential for automation tasks.</p><p>Operating within a rated voltage of 12-24 VDC and drawing a minimal current of just 20 mA, the sensor is energy-efficient while maintaining high performance. Its NPN output type ensures compatibility with numerous control systems, offering flexibility in integration.</p><p>The connection via cable allows for straightforward installation, while the durable housing made from PBT case material coupled with a Polymethyl Methacrylate lens ensures longevity even in demanding conditions. The sensor&amp;#39;s resilience is further highlighted by its IP67 degree of protection, safeguarding against dust ingress and water immersion.</p><p>Designed to perform under varying environmental conditions, the sensor operates effectively within temperatures ranging from -30 to 55 degrees Celsius. It maintains functionality in humidity levels between 35% and 85%, ensuring reliability across different climates.</p><p>Compliant with IEC 60529 standards, this photoelectric sensor meets international safety requirements. Its shock resistance rating of up to 1000 ms adds an extra layer of durability against mechanical impacts or vibrations commonly encountered in industrial environments.</p><p>With a quick response time of just 0.5 ms, the sensor swiftly reacts to changes in its environment—ideal for applications requiring rapid detection such as conveyor systems or automated sorting lines. The operation indicator supports both Light-ON and Dark-ON modes providing versatility depending on your operational needs.</p><p>Equipped with a red LED emitting element, the sensor offers clear visibility during operation which can be advantageous in monitoring scenarios where visual confirmation is needed. A cable length of 2 meters affords sufficient reach for most setups without compromising signal integrity or ease of installation.</p><p>Overall, this photoelectric sensor combines efficiency with robustness ensuring dependable performance tailored towards meeting technical demands efficiently across various sectors.</p>
