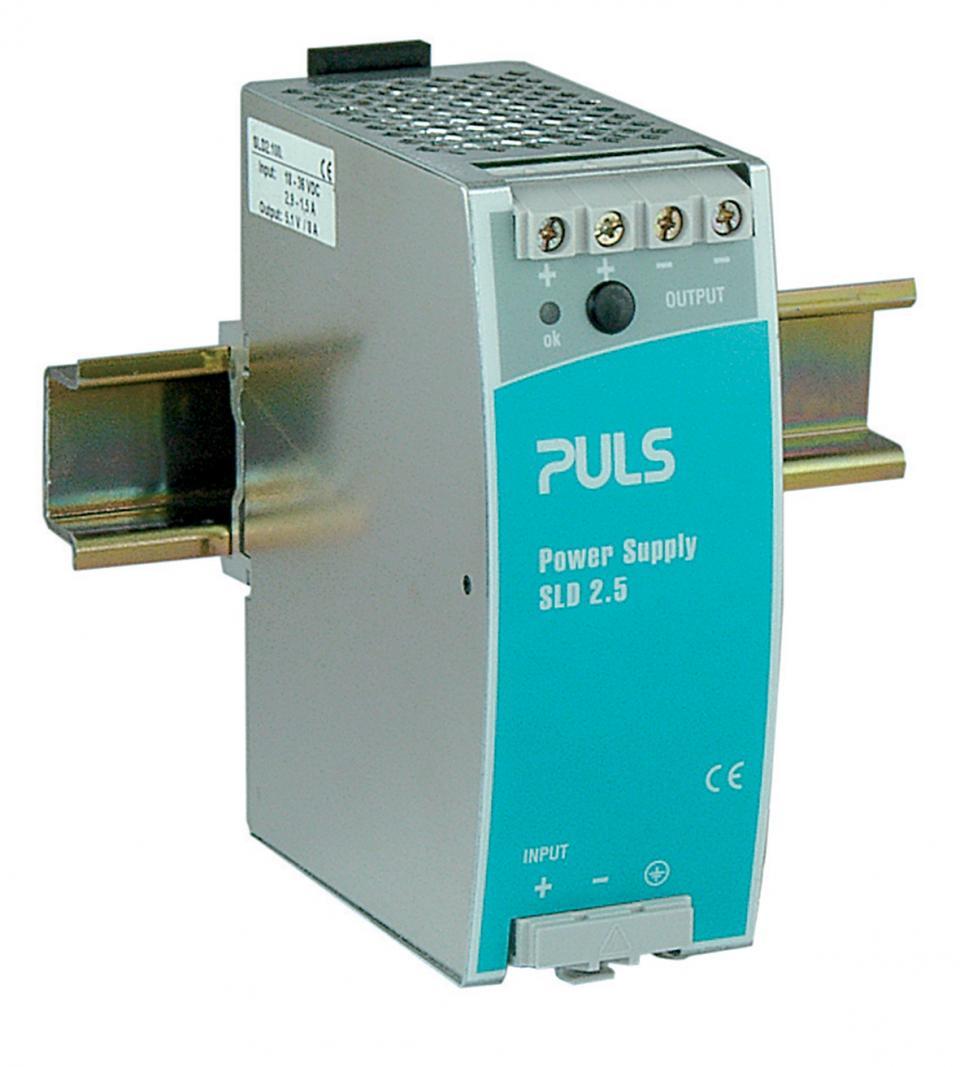

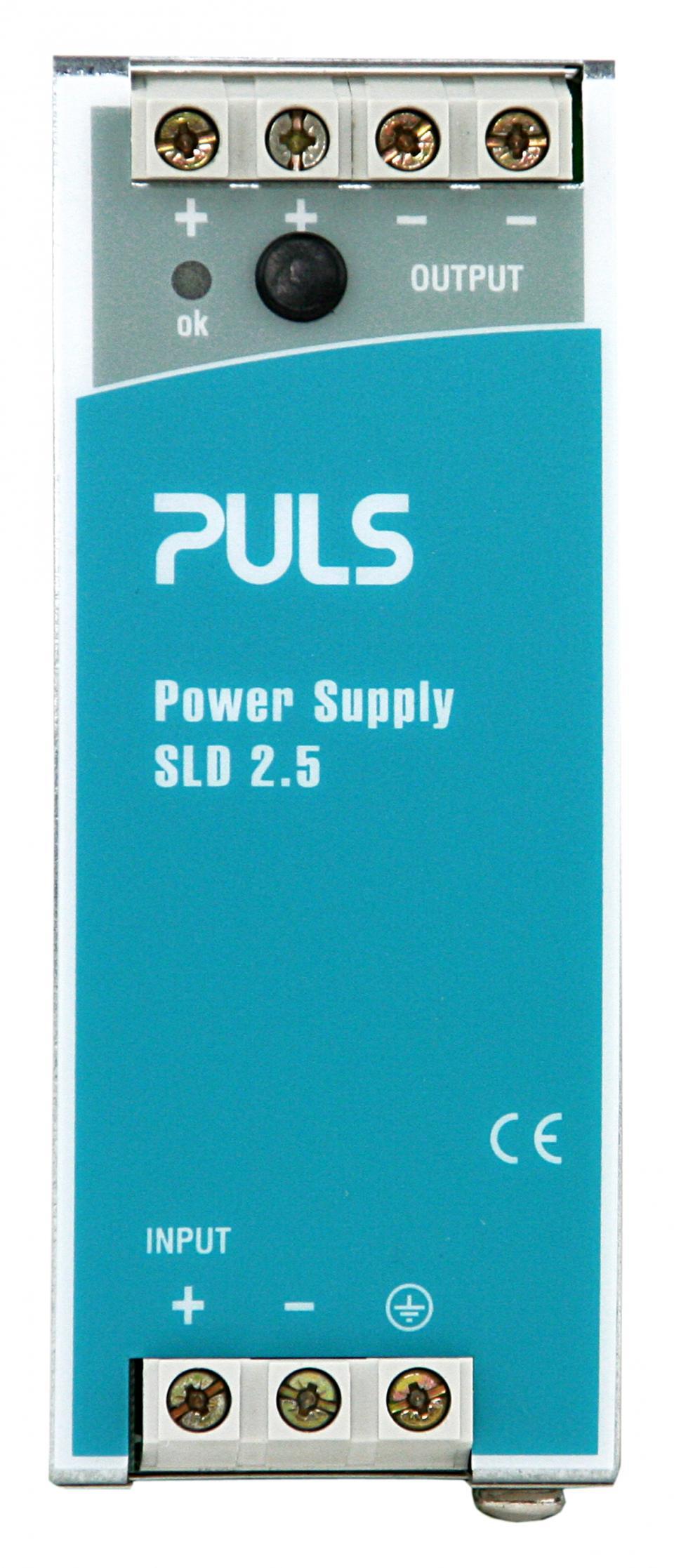

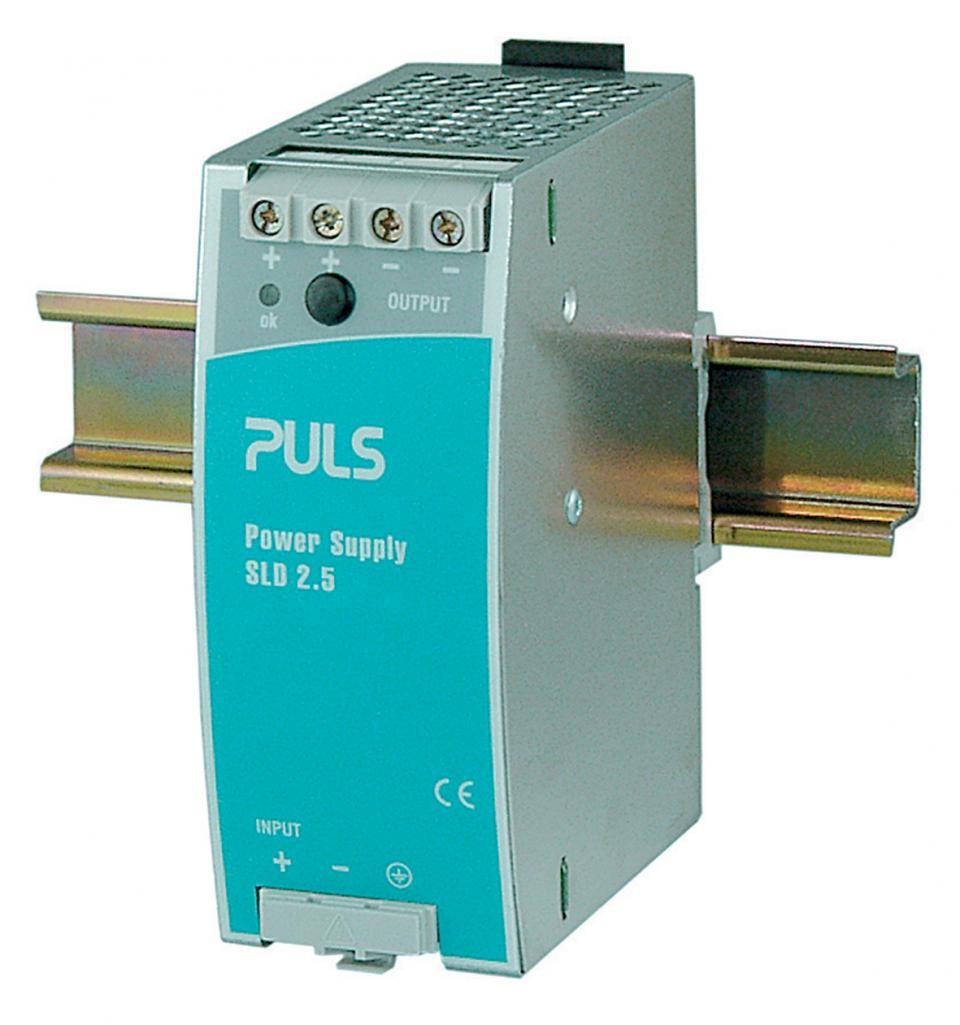

PULS DC/DC CONVERTER 5V 8A 40W SLD2.100

Product Code: SLD2.100

This DC/DC Converter provides an isolated output. It has a 24V input and a 5V output. With an efficiency of up to 82%, it ensures optimal power conversion. The converter also features negligibly low input inrush current, minimizing any potential electrical surges. It can deliver full output power within the temperature range of 0 to +60 degrees Celsius.

Technical Specifications

Conformal Coating No
Derating Temperature (°C) > +60
Brand PULS
Series SL series
Range SilverLine
Customs Tariff Number 85043121
Country of Origin Czech Republic
E Classification E-CS02
Warranty Period (Months) 36
Mounting Type DIN Rail
Operational Temperature Range (°C) 0 to 40
Connection Type Screw terminals
Derating 1.5 W/°C
Efficiency 82.00%
Family SilverLine
Input Voltage Range DC (V) 24
Integrated Decoupling Function No
Maximum Ripple and Noise Voltage (mVpp) 50
Minimum Input Voltage DC (V) 24
Minimum Output Current (A) 8
Output Power (W) 40
Output Voltage (V) 5-5.5
Power Loss (W) 8.5
Rated Current (A) 8
Dimensions (mm) 49W x 124H x 102D
Use In Crosslinking Yes
Weight (g) 470
Degree of Protection IP20
Standards and Approvals EU Declaration of Conformity
