Specifications

Product Type	Power Supply
Brand	PULS
Series	Q
Connection Type	Spring Clamp
Degree of Protection	IP20
Depth	117 mm
Derating Temperature	6 W/deg C
Efficiency	93.5%
Harmonic Correction	Active
Height	124 mm
Input Type	Wide-Range
Inrush Current	4 A, 7 A
Inrush Current Limitation	Active
Mounting Type	DIN Rail
Operational Temperature	-25 to 70 deg C
Phase	1
Power Loss	16.7 W
Power Reserve Type	50%
Range	DIMENSION
Rated Current	10 A
Rated Power	240 W
Rated Voltage	110-150 VDC, 24 VDC
Ripple and Noise Voltage	50 mVpp
Standards and Approvals	Class I Div. 2 Canada - CSA, Class I Div. 2 USA - CSA, EU Declaration of Conformity, IEC 60950 CB Scheme, IEC 61010-2-201 CB Scheme, Korea Certification, Marine ABS, Marine DNV, SEMI F47, UL 508 Canada, UL 508 USA, UL 60950-1 Canada, UL 60950-1 USA, UK Declaration of Conformity
Weight	900 g
Width	60 mm

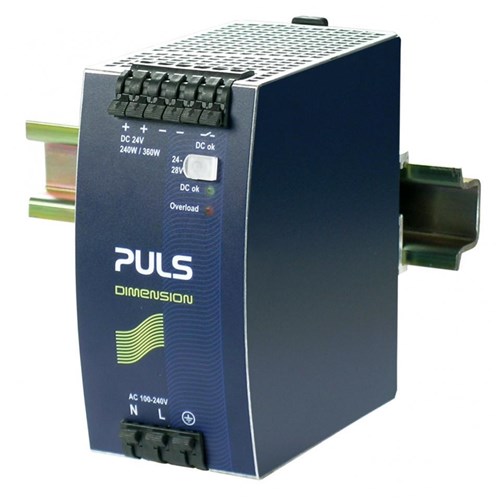

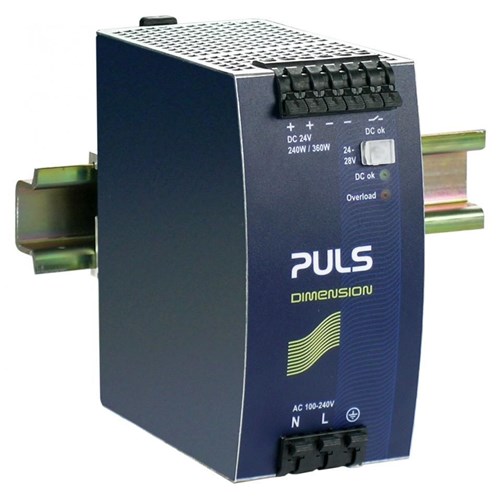

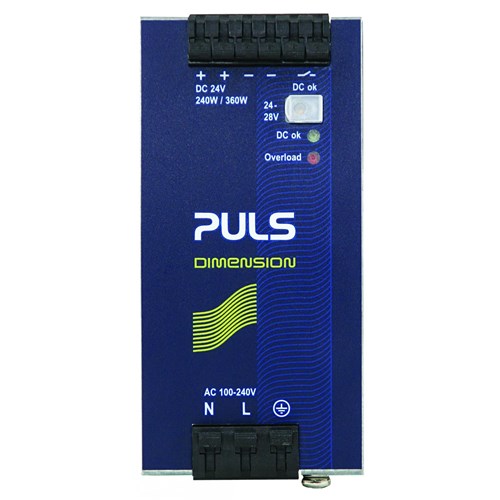

Puls QS10.241 Power Supply 1PH 110-150VDC 24VDC 10A 240 Watt 16.7 Watt DIN Rail Mount Spring Clamp IP20
