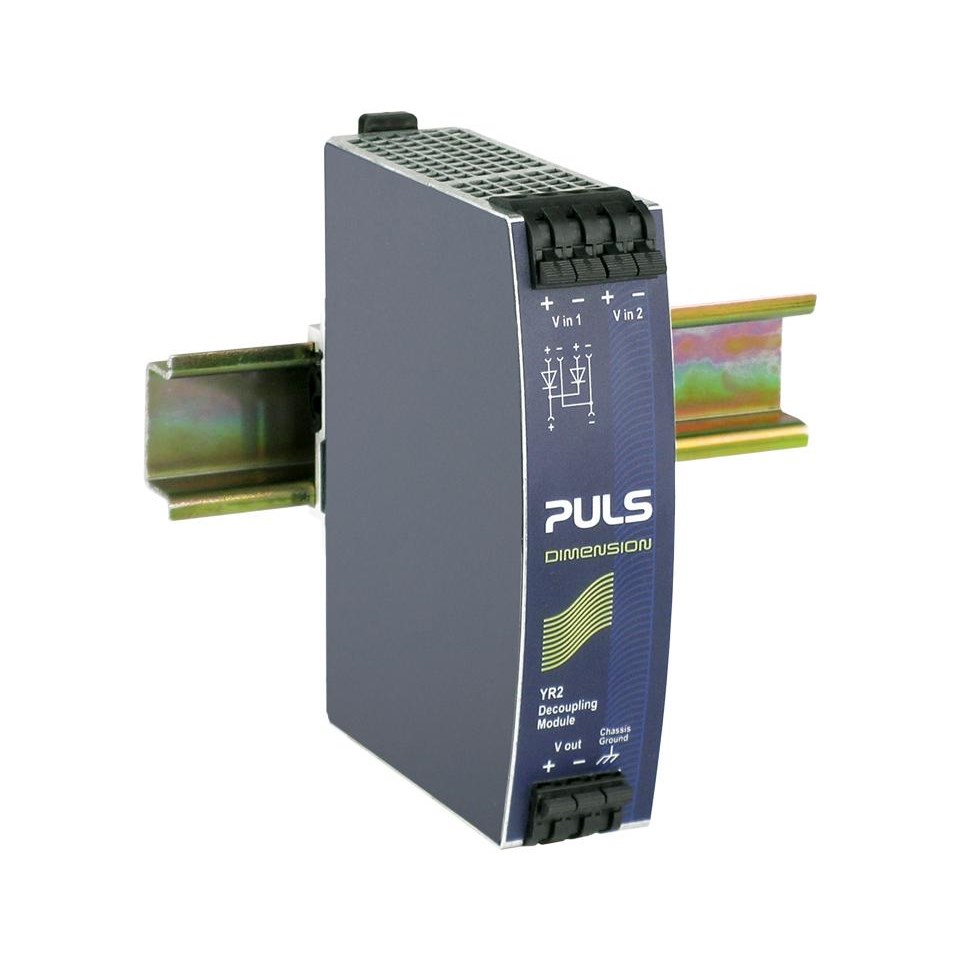

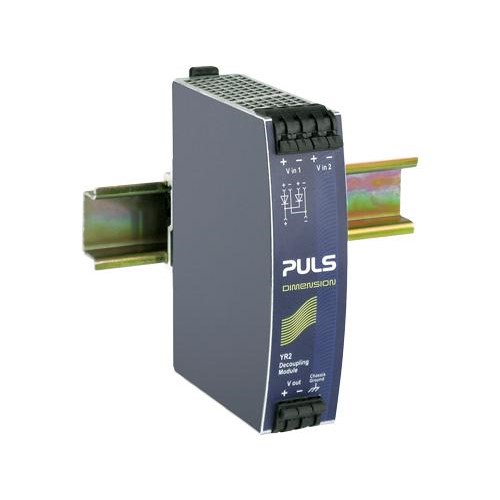

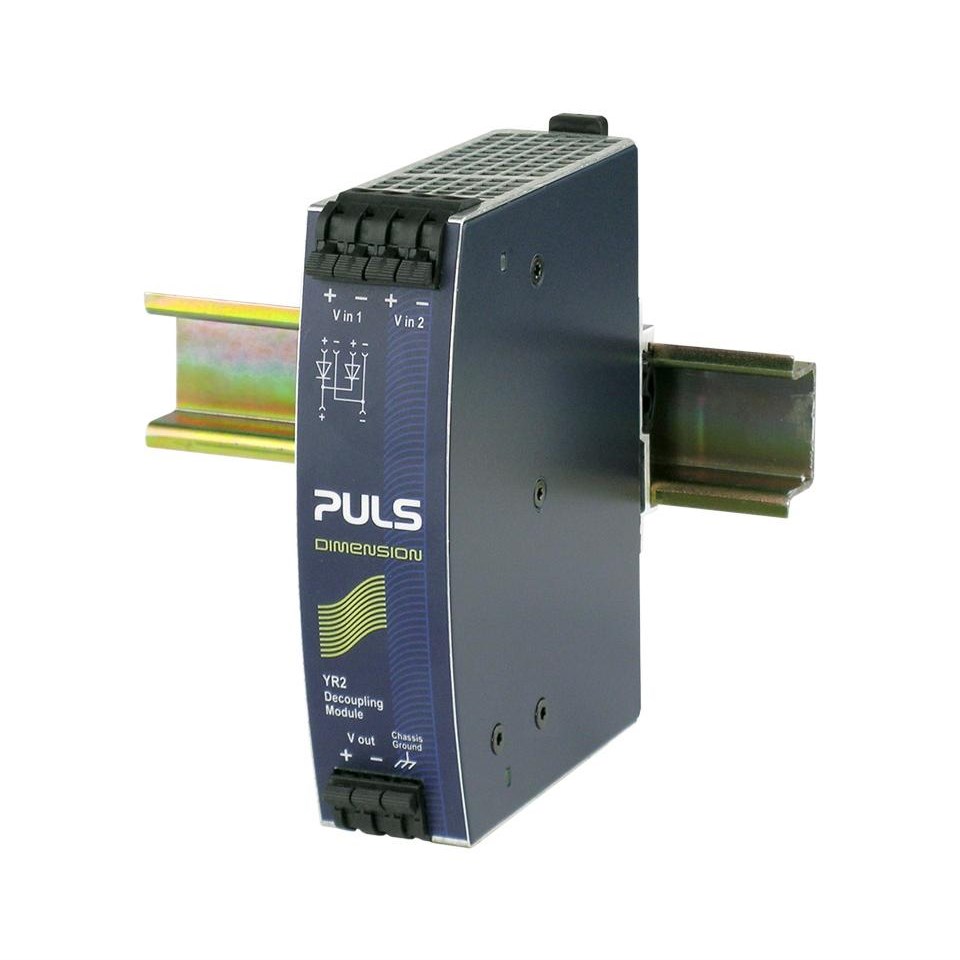

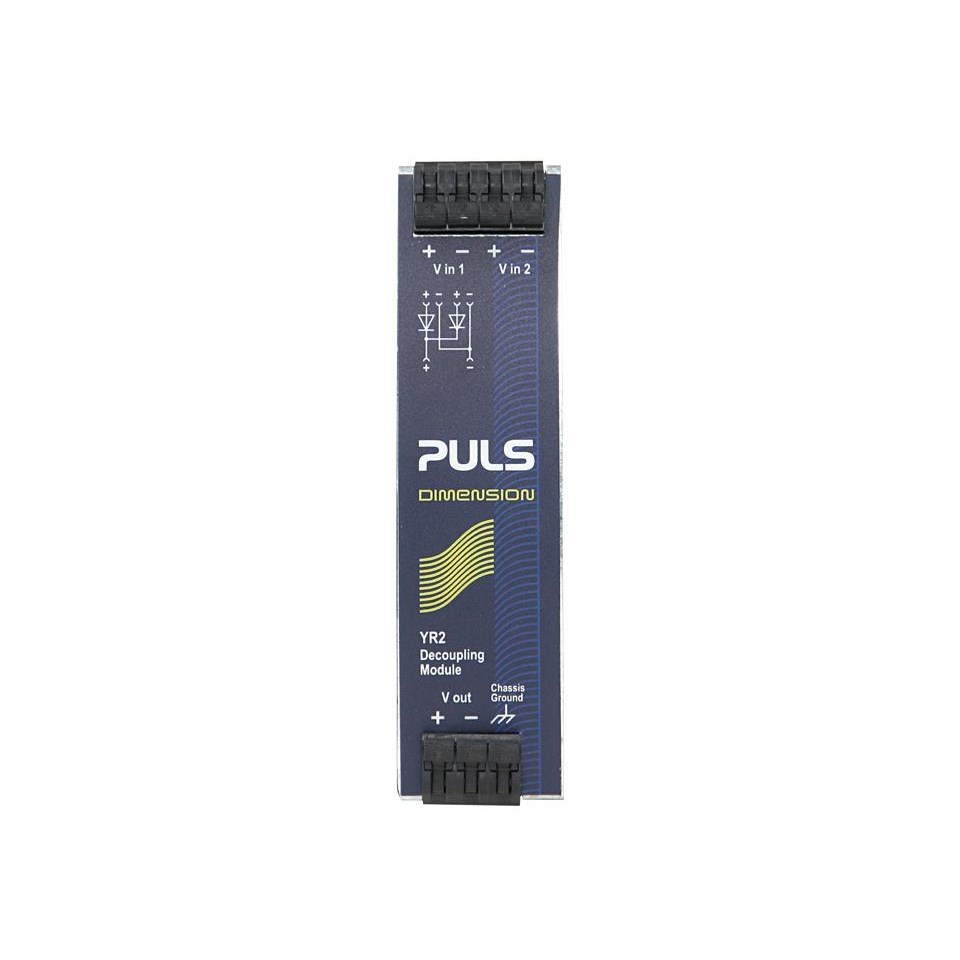

PULS DIODE REDUNDANCY MODULE 12-48VDC 20A YR2.DIODE

Product Code: YR2.DIODE

  • Cost effective solution to build redundant systems Dual input with single output Two diodes (common cathode) DC 12-48V +-25% Wide-range input Full power between -40°C and +60°C Width only 32mm Rugged metal housing Quick-connect spring-clamp terminals Easy wiring: Distribution terminal for negative pole included
In Stock Low Stock Out Of Stock Please See Attributes

Specifications

Mounting Type DIN Rail
Operational Temperature Range (°C) -40 to 70
Conformal Coating No
Brand PULS
Product Type Diode
Series Y series
Range DIMENSION
Customs Tariff Number 85044083
Country of Origin China / Czech Republic
E Classification E-CS03
Warranty Period (Months) 36
Connection Type Spring clamps
Derating 12 W/°C
Derating Temperature (°C) +60 to +70
Efficiency %
Family DIMENSION
Input Voltage Range DC (V) 12, 24, 48
Maximum Input Voltage DC (V) 48
Maximum Output Short-circuit Current (A) 25
Minimum Input Voltage DC (V) 12
Minimum Output Current (A) 20
No. of Inputs 2
Nominal Current Per Input (A) 10
Output Voltage (V) 12-48
Power Loss (W) 17
Power Loss No Load (W) 0
Rated Current (A) 20
Special Application Hazardous location, Marine
Dimensions (mm) 32W x 124H x 102D
Use In Crosslinking Yes
Voltage Drop (mV) 800
Weight (g) 290
Degree of Protection IP20
Standards and Approvals ATEX EN 60079, Class I Div. 2 Canada - CSA, Class I Div. 2 USA - CSA, EU Declaration of Conformity, IECEx IEC 60079, IEC 60950 CB Scheme, Marine ABS, Marine DNV, UL 508 Canada, UL 508 USA, UL 60950-1 Canada, UL 60950-1 USA, UK Declaration of Conformity

Description

Cost-effective solution for building redundant systems. This product features dual input with a single output and two diodes with a common cathode. It has a wide-range input of DC 12-48V with a tolerance of +-25%. The product operates at full power between -40°C and +60°C. With a width of only 32mm, it is compact and space-saving. The rugged metal housing ensures durability, while the quick-connect spring-clamp terminals make wiring easy. Additionally, the product includes a distribution terminal for the negative pole, simplifying the installation process.
