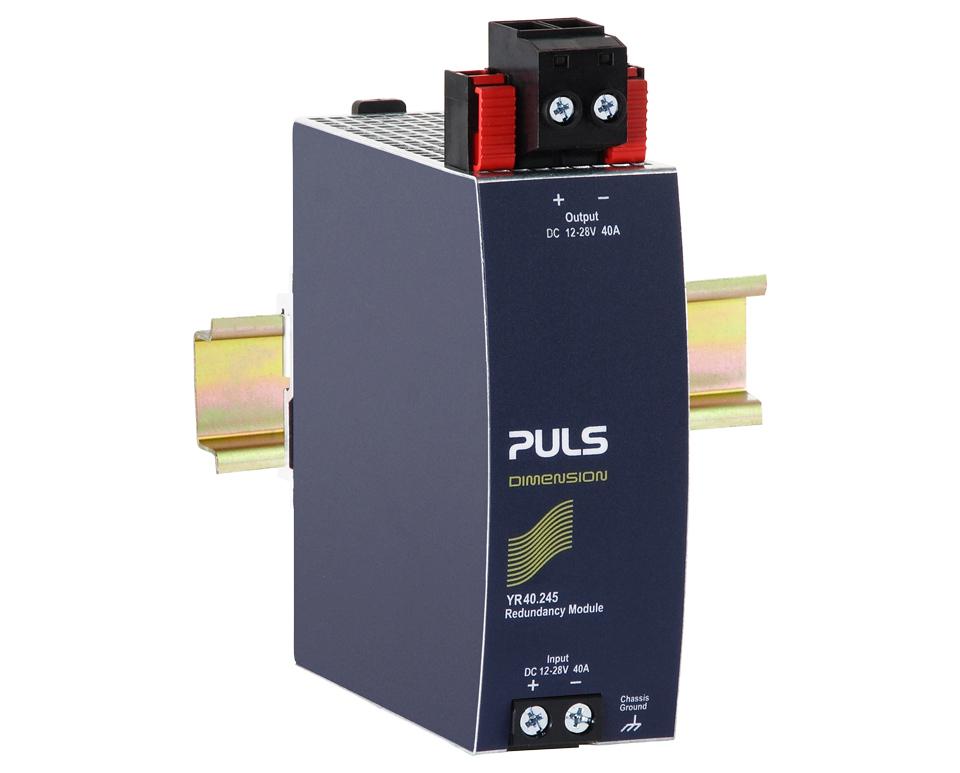

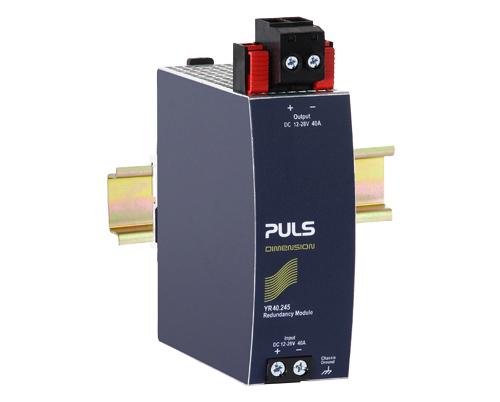

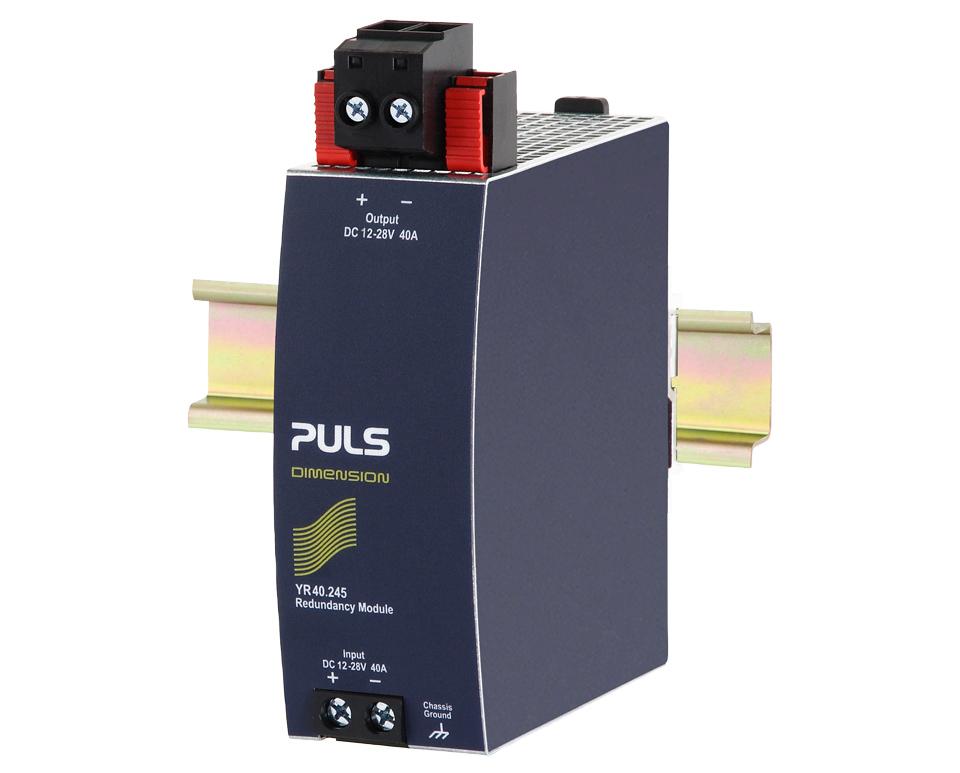

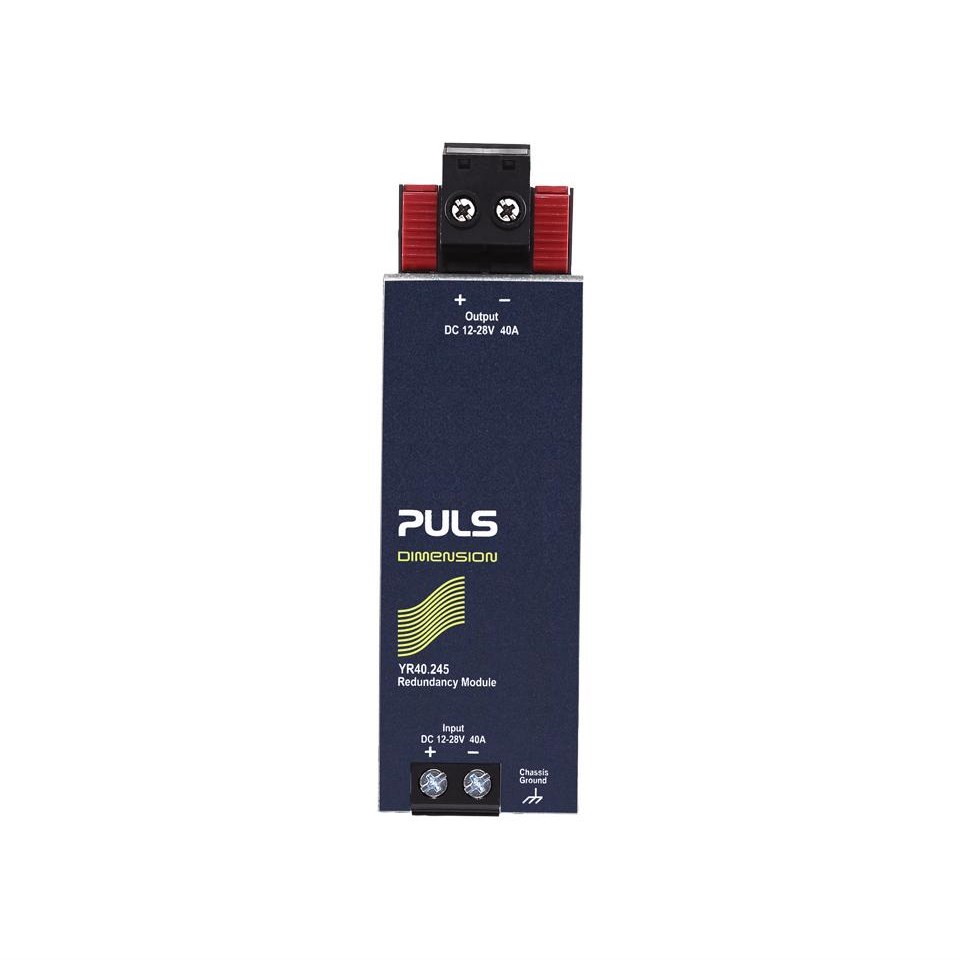

PULS MOSFET REDUNDANCY MODULE 12-28VDC 40A YR40.245

Product Code: YR40.245

  • For N+1 and 1+1 redundant systems Equipped with plug-connector for "Hot Swapping" Suitable for all DIMENSION power supplies except QT40 series Only 150mV voltage drop at 40A output current Only 6.2W loss at 40A 160% (65A) Peak load capability Reverse input polarity protection Full power between -40°C and +60°C Width only 46mm Rugged metal housing Easy wiring:Distribution terminal for negative pole included
In Stock Low Stock Out Of Stock Please See Attributes

Specifications

Mounting Type DIN Rail
Operational Temperature Range (°C) -40 to 70
Conformal Coating No
Brand PULS
Product Type MOSFET
Series Y series
Range DIMENSION
Customs Tariff Number 85044083
Country of Origin China / Czech Republic
E Classification E-CS03
Warranty Period (Months) 36
Connection Type Screw terminals
Derating 1 W/°C
Derating Temperature (°C) > +60
Efficiency %
Family DIMENSION
Input Voltage Range DC (V) 12, 24
Maximum Input Voltage DC (V) 28
Maximum Output Short-circuit Current (A) 22
Minimum Input Voltage DC (V) 12
Minimum Output Current (A) 40
No. of Inputs 1
Nominal Current Per Input (A) 40
Output Voltage (V) 12-28
Power Loss (W) 6.2
Power Loss No Load (W) 0.1
Rated Current (A) 40
Special Application Hazardous location, Marine
Dimensions (mm) 46W x 124H x 127D
Use In Crosslinking Yes
Voltage Drop (mV) 150
Weight (g) 340
Degree of Protection IP20
Standards and Approvals ATEX EN 60079, Class I Div. 2 Canada - CSA, Class I Div. 2 USA - CSA, EU Declaration of Conformity, IECEx IEC 60079, IEC 60950 CB Scheme, Korea Certification, Marine ABS, Marine DNV, UL 508 Canada, UL 508 USA, UL 60950-1 Canada, UL 60950-1 USA, UK Declaration of Conformity

Description

The N+1 and 1+1 redundant systems are compatible with this product. It is equipped with a plug-connector for "Hot Swapping". This product is suitable for all DIMENSION power supplies, except the QT40 series. It has a lowVoltage drop of only 150 mV at an output current of 40 A. The power loss is also minimal, with only 6.2 W at 40 A. It has a peak load capability of 160% (65 A). Additionally, it offers reverse input polarity protection and can operate at full power between -40°C and +60°C. The width of the product is only 46mm, and it features a rugged metal housing. Wiring is made easy with the included distribution terminal for the negative pole.
