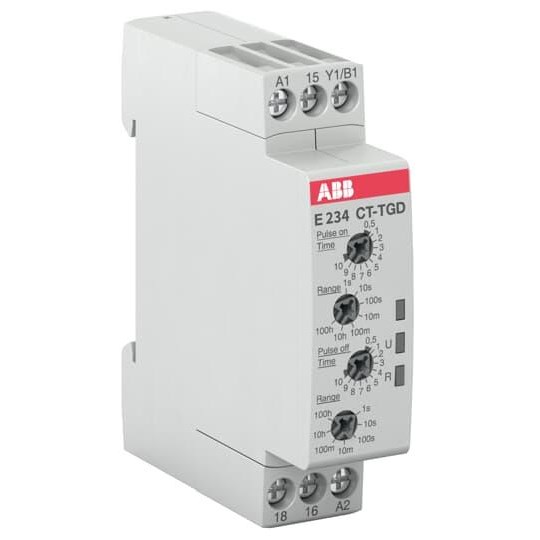

ABB CTTGD Time Relay 1CO SPDT Contact 24-240VAC 24-48VDC 4A Screw Terminal

Product Code: CTTGD

Versatile voltage range: 24-240 VAC, 24-48 VDC
Compact design: 17.5 mm width, 70 mm height
Flexible mounting on DIN rails
Wide operating time: 0.05 s to 100 hr
High protection standards: IP20/IP50 rated

Specifications

Product Type	Time Relay
Brand	ABB
Contact Configuration	1CO SPDT
Degree of Pollution	IP3
Degree of Protection	IP20, IP50
Height	70 mm
Mounting Type	35 x 15 mm DIN Rail, 35 x 7.5 mm DIN Rail
Operating Time	0.05 s-100 hr
Operational Temperature	-20 to 60 deg C
Rated Current	4 A
Rated Frequency	50/60 Hz
Rated Voltage	24-240 VAC, 24-48 VDC
Standards and Approvals	CAN/CSA,IEC/EN,UL
Terminal Type	Screw
Weight	0.052 kg
Width	17.5 mm
